U10Ⅱ Efficiency Multirotor UAV Motor KV100

Original price was: $339.90.Current price is: $335.00.

T-MOTOR U10Ⅱ KV100 is a high-precision long-endurance U-series UAV motor. Featuring a new iron core structure, it offers 62% higher payload and 10.6kg max thrust, supporting stable high-temperature operation. With upgraded dust protection, 1000-hour MTBF and 1500 flight cycles, it is waterproof, dustproof and low-noise, ideal for professional surveillance, security and mapping UAVs.

55 in stock

SKU: U10II-KV100 Category: U Efficiency Type UAV Motors Tags: efficiency UAV motor, T-MOTOR, U Efficiency Type Brand: T-MOTOR

Description

Description

Detail information

About T-MOTOR U10ⅡEfficiency Multirotor UAV Motor KV100

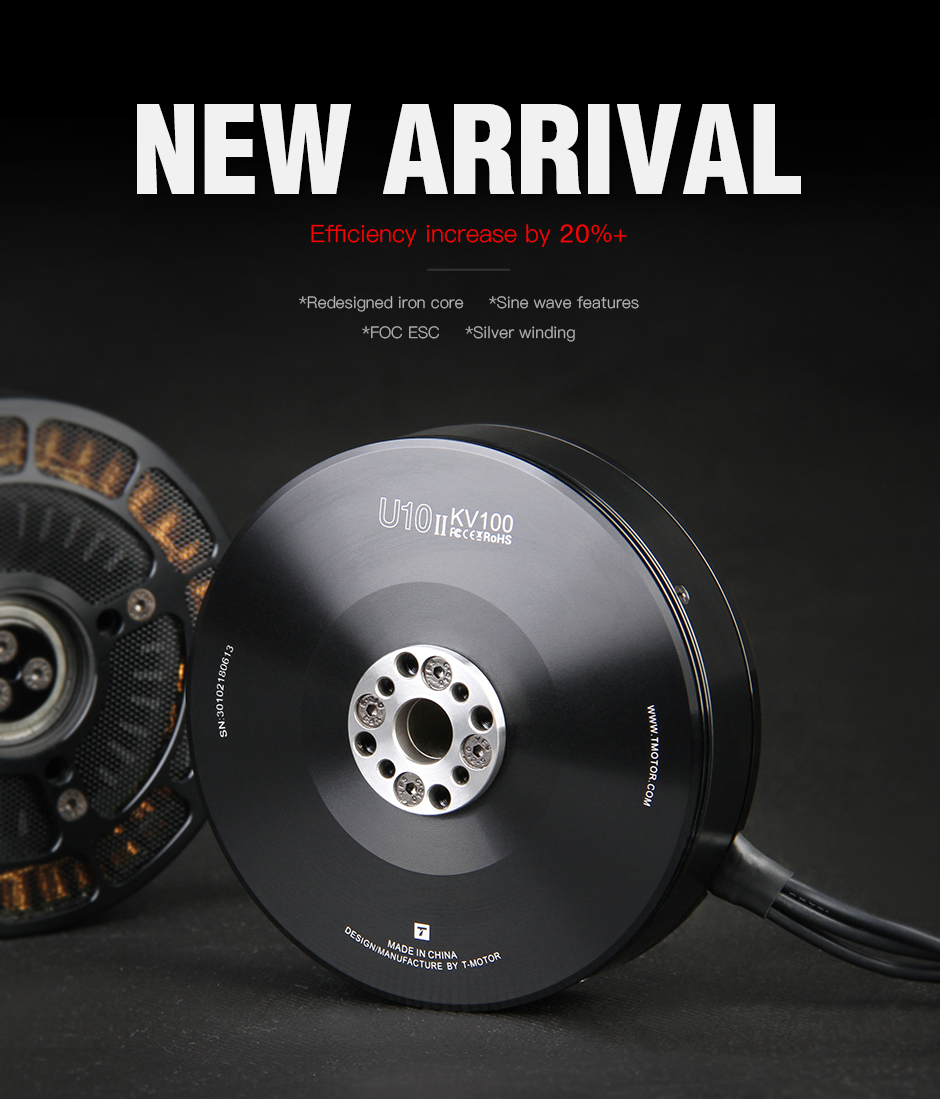

T-MOTOR U10 II KV100is a precision-engineered UAV motor, delivering a 62% payload boost and up to 10.6kg thrust. With a lifespan of 1,500 flights, each lasting about 40 minutes,

it ensures reliable and efficient performance for demanding aerial tasks.

U10ⅡKV100 Highlights:

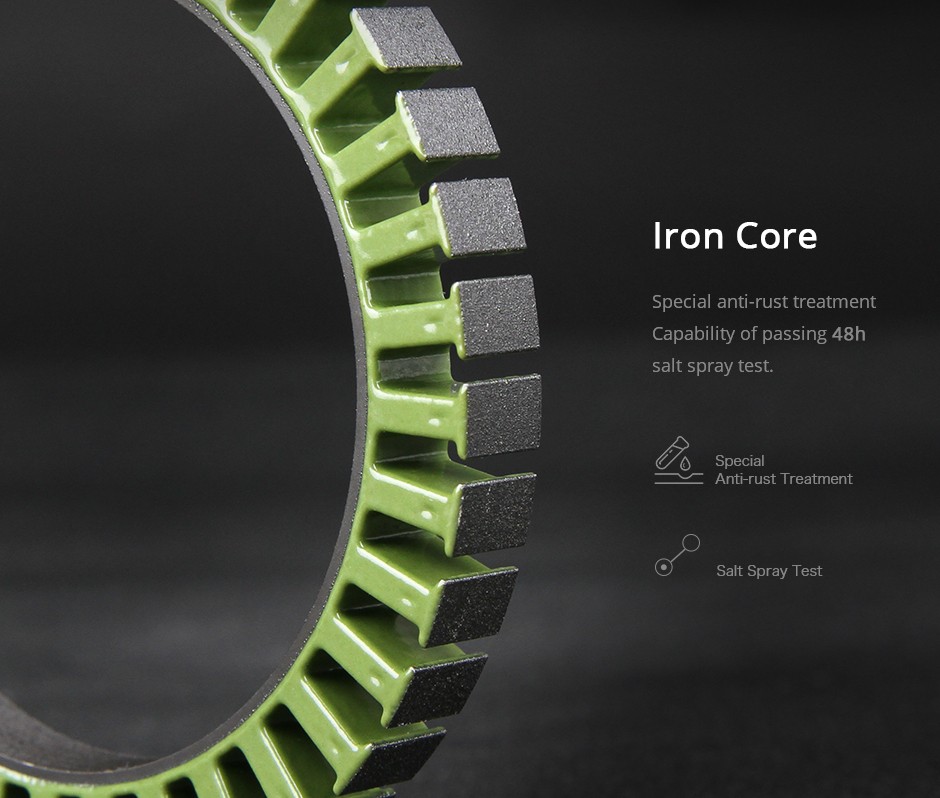

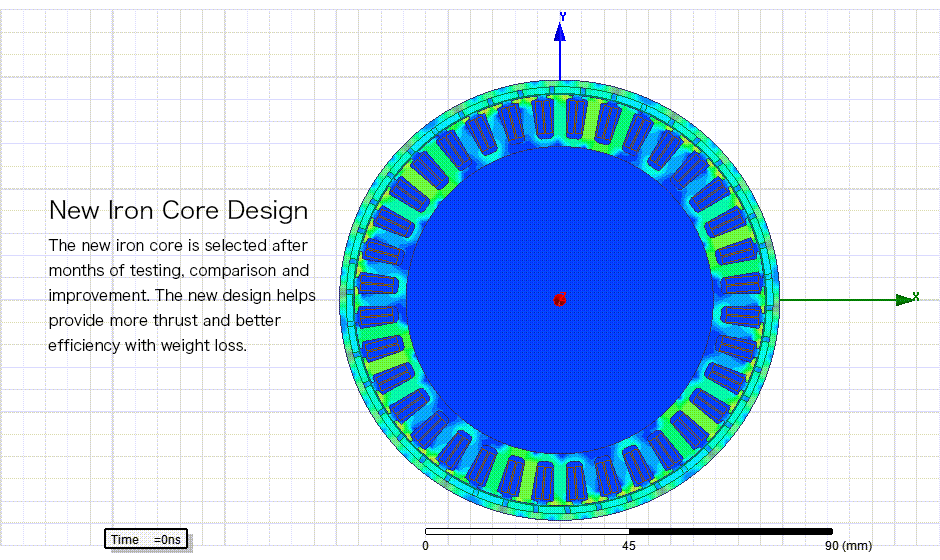

New iron core design.

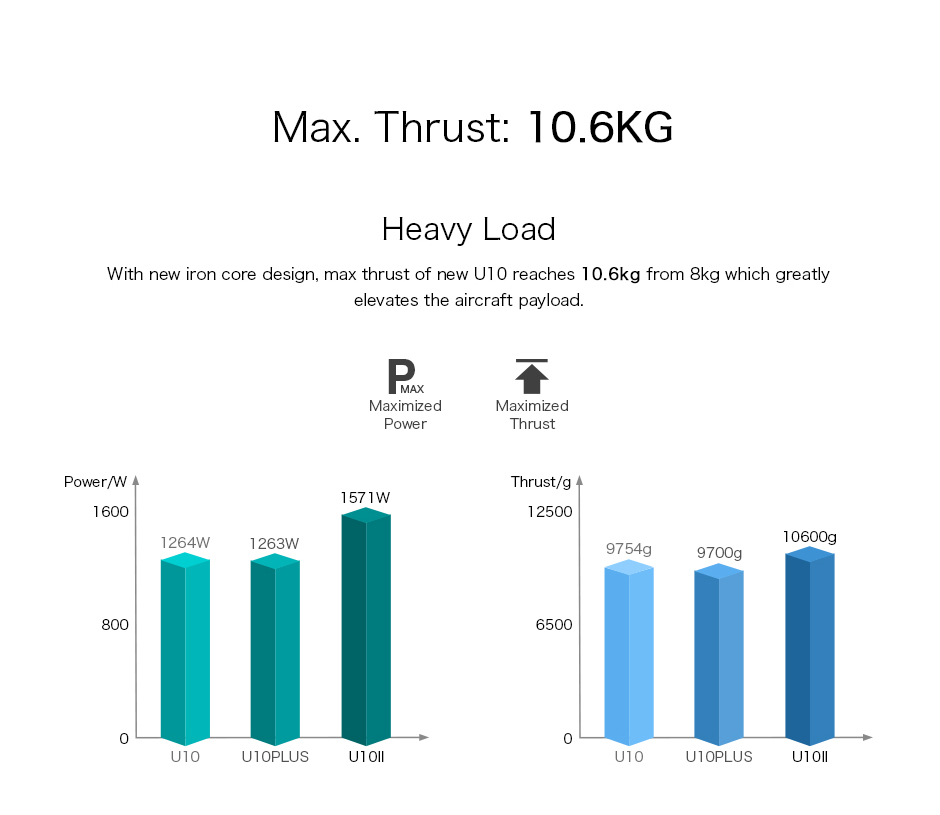

max thrust 10.6 kg.

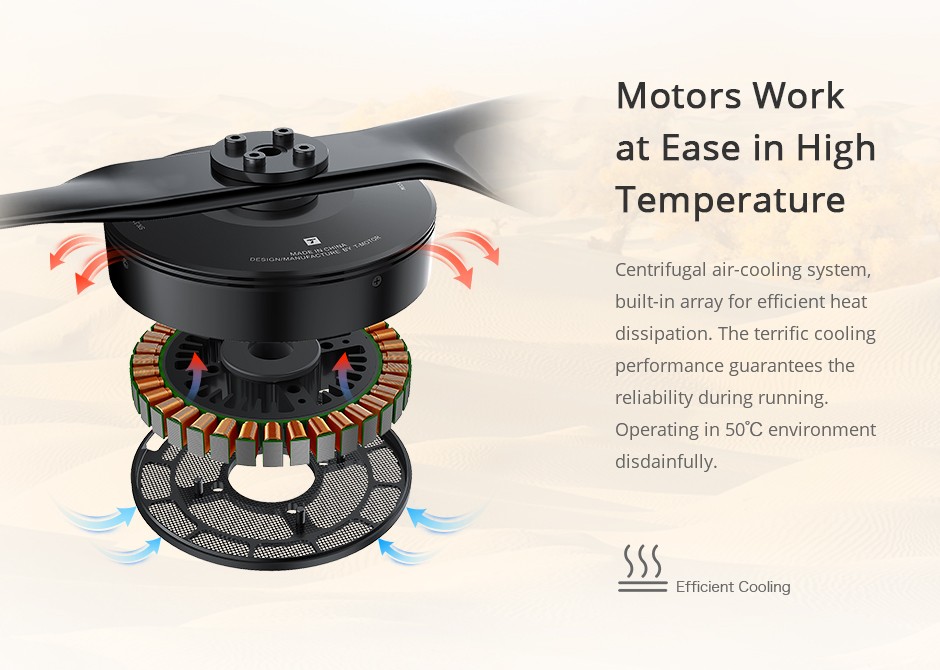

Motor work at easy in high temperature.

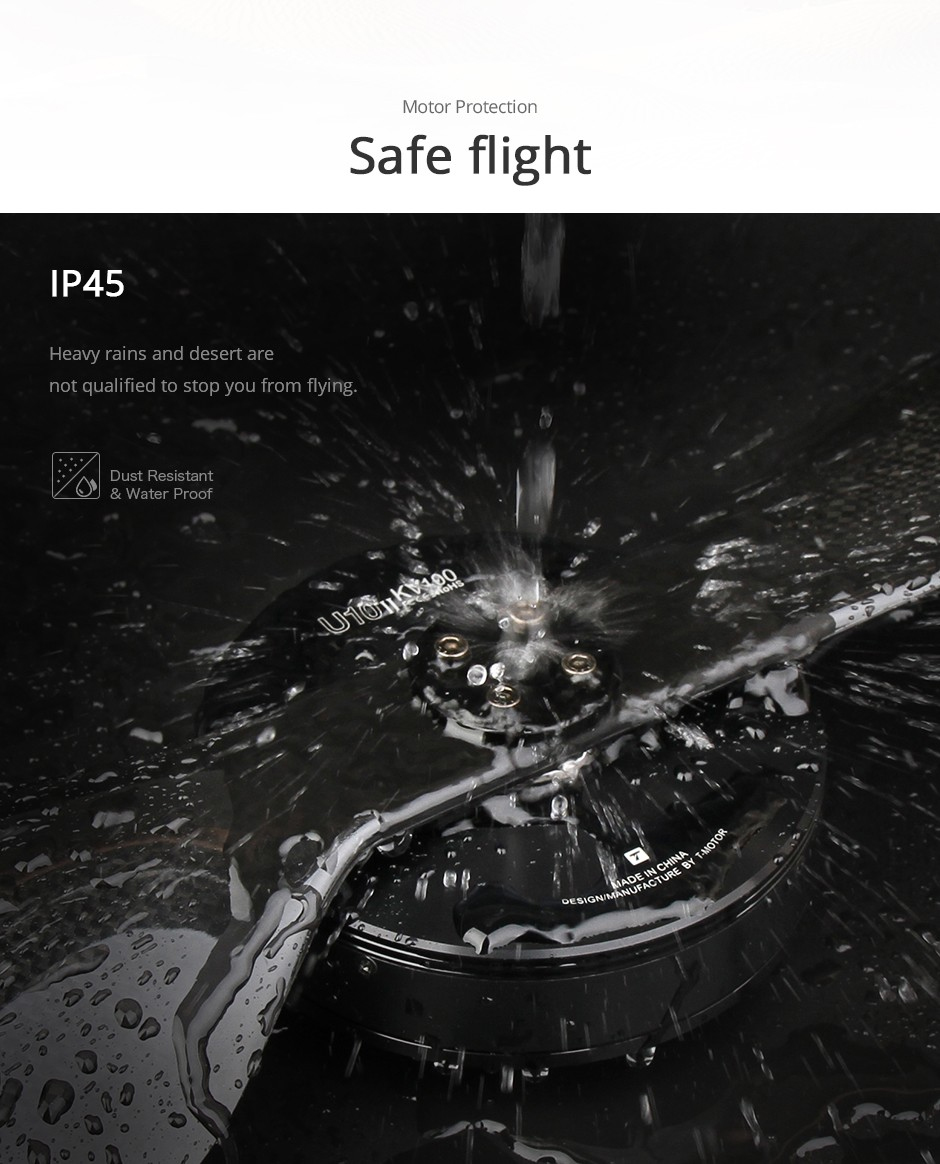

Motor protection for safe flight.

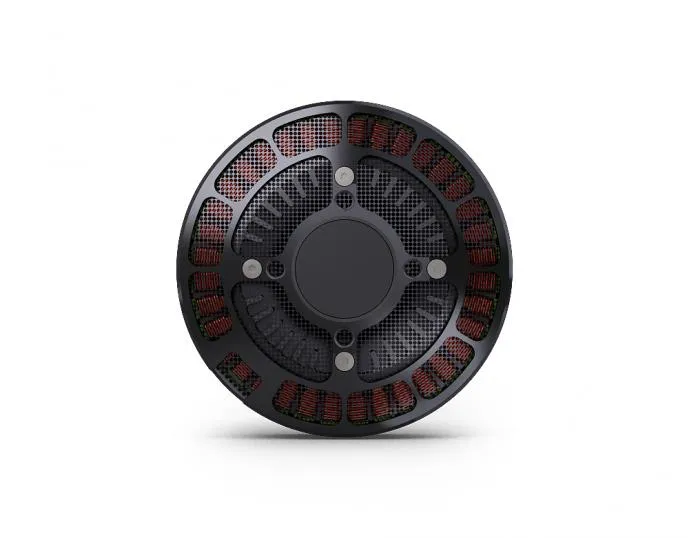

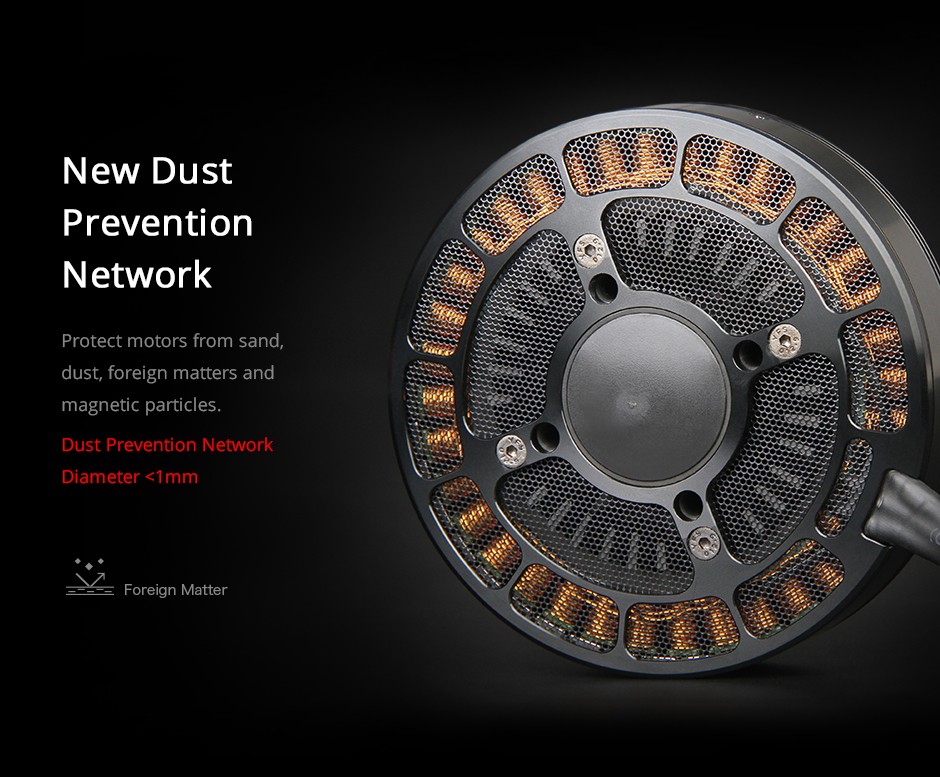

New dust protection network.

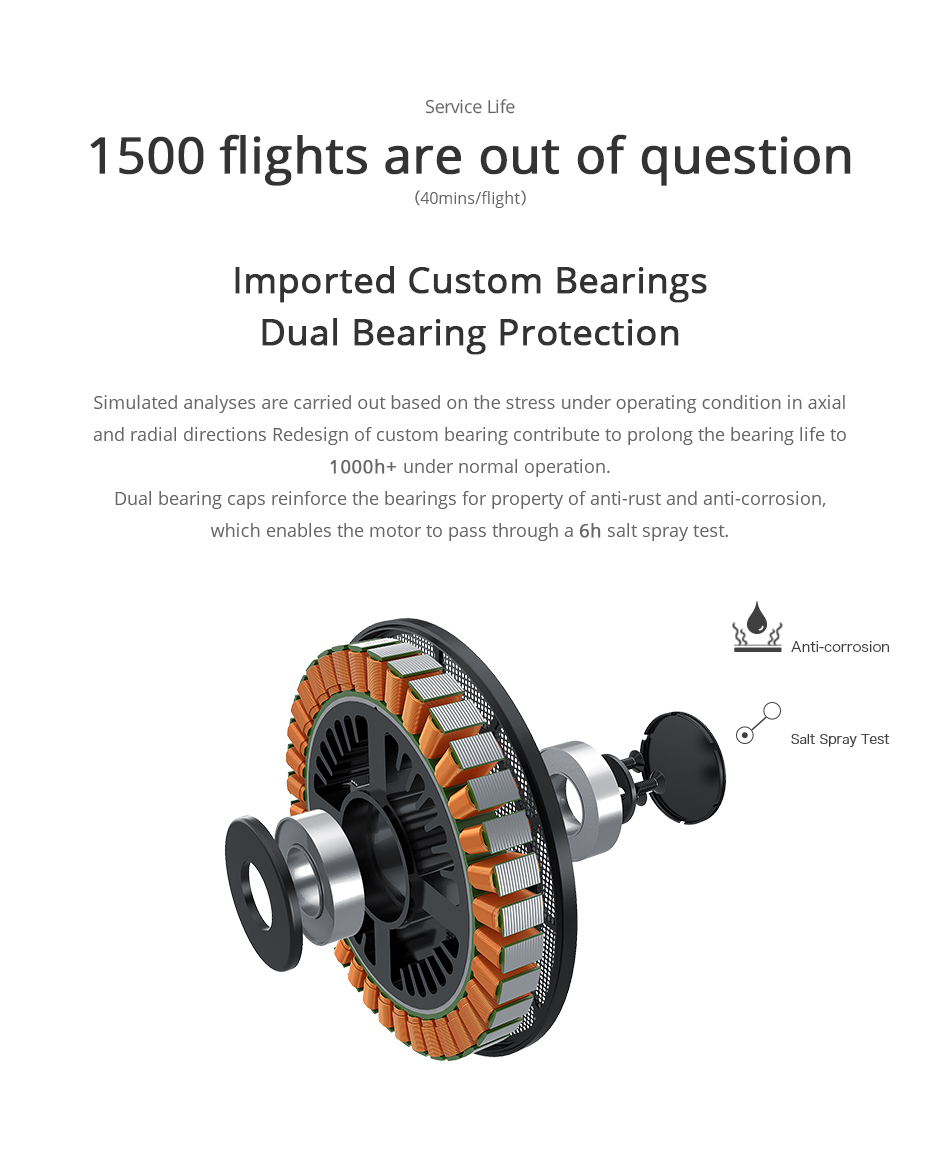

MTBF：About 1000hours
Features：Industrial Grade, Waterproof, dustproof, low noise, large bearings
Industrial grade, dust proof, water proof.

Application Areas：

Surveillance, cruise, security and protection, surveying and mapping.

Packing List Includes:

1x T-MOTOR 10ⅡMotor KV100

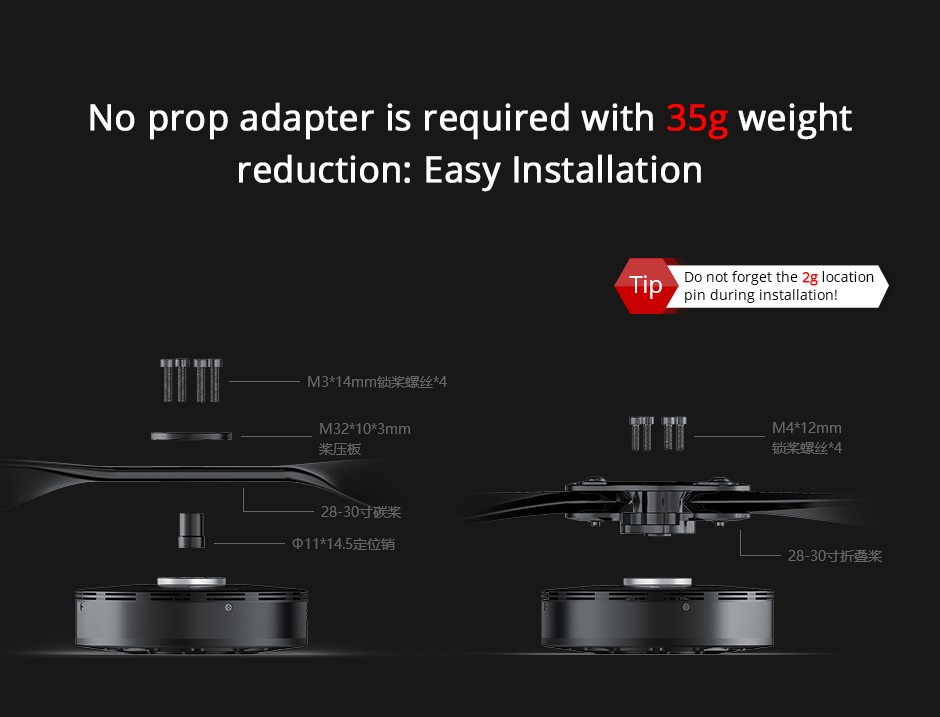

1x Hardware pack

Matching Guide:

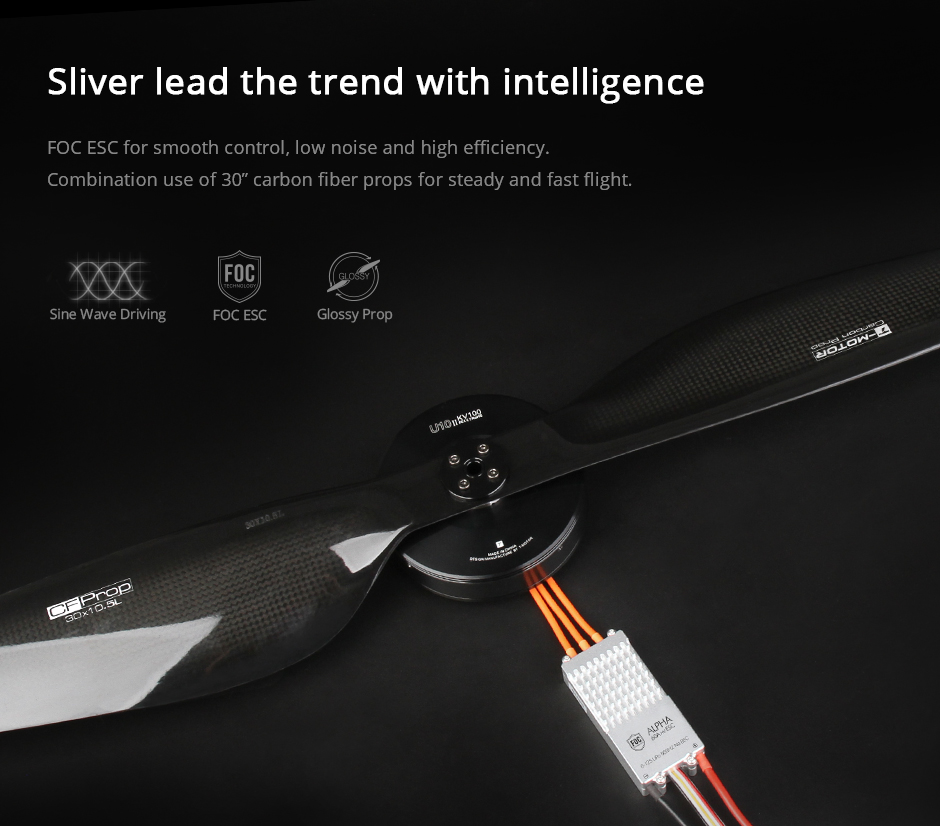

T-MOTOR G30*10.5 Prop / ALPHA 60A 12S ESC

“U Efficiency” motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

Lightweight design allows you to fly longer, Industrial-grade dustproof and waterproof and anti-aging, greatly extends the working life of the motor. Curved magnets with precise tolerance control and rational magnet space for optimal motor magnetic circuit help improve motor performance. The motor uses imported customized bearings to extend the service life of the motor and ensure smooth flight and longer flight time.

“U Efficiency” motors (from U-series) are aimed for high end UAVs requiring long endurance. This kind of UAVs are usually for surveillance, cruise, security and protection, surveying and mapping.

1. Max. thrust ：10.6kg
2. Recommendation：T-MOTOR G30*10.5″CF prop
3. MTBF：About 1000hours
4. Features：Lightweight design, Waterproof, dustproof, low noise

If you have any questions or inquires, please contact us: [email protected]

Specifications

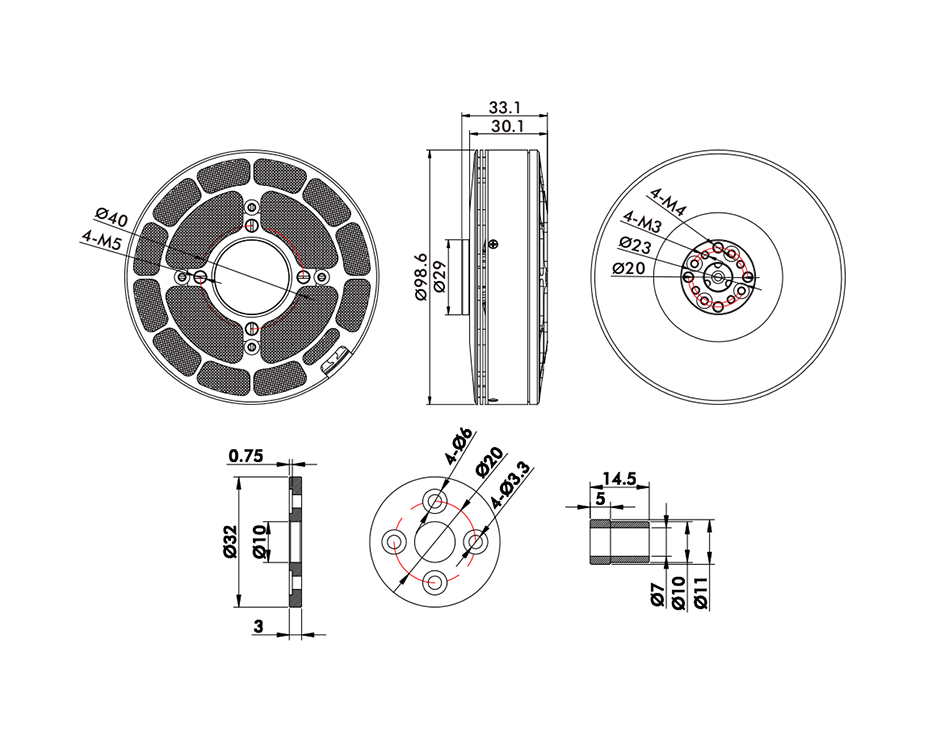

Technical Drawing

Specification Export to Excel

Diameter	98.6mm	Lead Spec	AWG#16 90mm
Height	33.1mm	Ingress Protection Level	IP45
Shaft Diameter	15mm	Packing Size	16712958.5mm
Configuration	36N42P

KV	100	Rated Voltage(Lipo)	12S
Motor Weight (Incl. Cable)	415g	Propeller Recommendation	28-30″
Idle Current(18V)	1A	Quadcopter(28CF)	16kg
Internal Resistance	101±5mΩ	Hexacopter(28CF)	24kg
Peak Current(180s)	32.4A	Octocopter(28CF)	32kg
Max. Power(180s)	1600W

Test Data Export to Excel

Type	Voltage (V)	Propeller	Throttle	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Efficiency (g/W)	Operating Temperature (℃)
U10II KV100	8S (32V)	T-MOTOR G29*9.5″ CF	40%	1172	0.4	2.30	1009	73	16.01	/
			42%	1245	0.42	2.40	1043	79	15.82
			44%	1347	0.46	2.60	1076	86	15.75
			46%	1448	0.48	2.90	1140	93	15.57
			48%	1539	0.51	3.10	1193	102	15.09
			50%	1636	0.54	3.30	1233	109	15.04
			52%	1749	0.57	3.70	1283	119	14.72
			54%	1854	0.61	4.00	1337	128	14.44
			56%	1942	0.65	4.30	1385	139	13.93
			58%	2058	0.68	4.60	1435	150	13.71
			60%	2214	0.72	5.00	1484	162	13.7
			62%	2342	0.76	5.40	1534	174	13.45
			64%	2445	0.8	5.70	1584	186	13.14
			66%	2579	0.83	6.10	1631	199	12.98
			68%	2690	0.88	6.60	1676	213	12.62
			70%	2820	0.93	7.00	1719	227	12.4
			75%	3215	1.03	8.10	1823	264	12.17
			80%	3644	1.19	9.70	1950	314	11.6
			90%	4272	1.37	12.20	2171	398	10.73
			100%	5059	1.61	15.60	2386	509	9.94
U10II KV100	8S (32V)	T-MOTOR G30*10.5″ CF	40%	1405	0.5	2.60	980	85	16.59	/
			42%	1487	0.53	2.80	1017	91	16.33
			44%	1597	0.56	3.10	1064	100	16.05
			46%	1714	0.6	3.30	1113	109	15.77
			48%	1817	0.63	3.60	1141	118	15.4
			50%	1934	0.67	3.90	1188	128	15.14
			52%	2048	0.71	4.30	1234	138	14.8
			54%	2180	0.75	4.60	1280	150	14.55
			56%	2307	0.8	5.00	1348	163	14.11
			58%	2431	0.84	5.40	1400	176	13.82
			60%	2586	0.88	5.80	1425	190	13.64
			62%	2749	0.93	6.30	1489	205	13.43
			64%	2879	0.98	6.70	1533	219	13.16
			66%	3032	1.03	7.20	1580	236	12.86
			68%	3161	1.07	7.70	1626	252	12.57
			70%	3297	1.12	8.20	1670	266	12.38
			75%	3655	1.24	9.50	1775	309	11.81
			80%	4144	1.39	11.30	1899	367	11.28
			90%	4899	1.62	14.30	2098	465	10.54
			100%	5717	1.9	18.20	2309	593	9.64
U10II KV100	8S (32V)	T-MOTOR G32*11″ CF	40%	1651	0.62	3.20	949	105	15.75	/
			42%	1761	0.65	3.50	986	113	15.52
			44%	1882	0.69	3.80	1032	124	15.2
			46%	2000	0.73	4.10	1059	135	14.84
			48%	2133	0.78	4.50	1106	147	14.52
			50%	2257	0.83	4.90	1148	159	14.2
			52%	2403	0.86	5.30	1193	171	14.07
			54%	2538	0.91	5.70	1240	186	13.67
			56%	2689	0.96	6.10	1287	200	13.42
			58%	2828	1.02	6.70	1334	217	13.03
			60%	2935	1.07	7.20	1380	233	12.59
			62%	2964	1.12	7.70	1421	250	11.86
			64%	3245	1.19	8.20	1464	269	12.07
			66%	3418	1.24	8.80	1514	285	11.99
			68%	3511	1.3	9.30	1544	304	11.56
			70%	3739	1.36	10.00	1600	324	11.52
			75%	4119	1.51	11.50	1687	375	10.98
			80%	4535	1.65	13.20	1792	430	10.54
			90%	5518	2.04	17.50	1989	571	9.65
			100%	6430	2.38	22.10	2196	722	8.9
U10II KV100	10S (40V)	T-MOTOR G29*9.5″ CF	40%	1733	0.58	3.00	1284	120	14.41	/
			42%	1856	0.61	3.30	1342	132	14.1
			44%	2007	0.66	3.60	1404	145	13.88
			46%	2172	0.7	4.00	1468	160	13.57
			48%	2295	0.76	4.30	1513	175	13.12
			50%	2371	0.8	4.70	1591	192	12.37
			52%	2619	0.86	5.20	1656	208	12.56
			54%	2804	0.91	5.60	1713	225	12.44
			56%	2960	0.95	6.00	1768	244	12.14
			58%	3199	1.01	6.50	1828	265	12.08
			60%	3422	1.1	7.40	1911	299	11.46
			62%	3584	1.15	7.80	1966	317	11.3
			64%	3742	1.2	8.30	2003	338	11.08
			66%	3963	1.26	8.90	2061	360	11
			68%	4082	1.3	9.40	2112	380	10.74
			70%	4272	1.35	10.00	2160	405	10.55
			75%	4688	1.48	11.50	2303	464	10.1
			80%	5177	1.63	13.10	2411	529	9.78
			90%	6145	1.95	16.80	2651	680	9.04
			100%	7200	2.28	21.40	2917	865	8.32
U10II KV100	10S (40V)	T-MOTOR G30*10.5″ CF	40%	2038	0.7	3.50	1248	141	14.48	/
			42%	2236	0.75	3.80	1308	155	14.43
			44%	2300	0.81	4.20	1366	170	13.55
			46%	2479	0.86	4.60	1426	187	13.27
			48%	2702	0.93	5.10	1491	206	13.09
			50%	2875	0.98	5.60	1545	225	12.8
			52%	3037	1.04	6.10	1604	245	12.4
			54%	3235	1.1	6.60	1661	266	12.17
			56%	3397	1.16	7.10	1716	286	11.86
			58%	3670	1.23	7.70	1767	312	11.75
			60%	3829	1.29	8.30	1821	334	11.46
			62%	4147	1.39	9.30	1907	375	11.05
			64%	4282	1.43	9.80	1949	397	10.78
			66%	4458	1.52	10.40	1992	420	10.6
			68%	4719	1.58	11.00	2039	447	10.57
			70%	4846	1.64	11.70	2082	474	10.21
			75%	5335	1.78	13.40	2216	542	9.84
			80%	5819	1.94	15.30	2322	618	9.41
			90%	6912	2.29	19.60	2554	794	8.7
			100%	8158	2.69	24.90	2798	1011	8.07
U10II KV100	10S (40V)	T-MOTOR G32*11″ CF	40%	2390	0.87	4.30	1198	174	13.71	74.8 (Ambient Temperature: 16.9℃)
			42%	2565	0.94	4.70	1253	192	13.36
			44%	2744	1	5.20	1309	211	13.02
			46%	2932	1.07	5.70	1363	231	12.69
			48%	3116	1.14	6.20	1415	253	12.33
			50%	3348	1.21	6.80	1470	276	12.13
			52%	3501	1.28	7.40	1522	298	11.74
			54%	3738	1.35	8.00	1576	323	11.57
			56%	3857	1.43	8.70	1634	351	10.99
			58%	4125	1.51	9.30	1684	378	10.9
			60%	4338	1.59	10.00	1730	406	10.69
			62%	4474	1.66	10.70	1778	433	10.32
			64%	4691	1.74	11.40	1850	463	10.13
			66%	5060	1.87	12.70	1922	516	9.81
			68%	5279	1.97	13.50	1944	546	9.67
			70%	5486	2.04	14.20	2000	576	9.51
			75%	6016	2.23	16.30	2107	661	9.1
			80%	6466	2.41	18.50	2201	748	8.64
			90%	7634	2.83	23.60	2429	955	7.99
			100%	8790	3.28	29.70	2641	1203	7.3
U10II KV100	12S (48V)	T-MOTOR G28*9.2″ CF	40%	2087	0.66	3.40	1604	167	12.5	51.8 (Ambient Temperature: 20℃)
			42%	2298	0.72	3.90	1675	187	12.3
			44%	2425	0.79	4.30	1766	208	11.66
			46%	2732	0.84	4.70	1841	226	11.54
			48%	3007	0.93	5.40	1955	262	11.46
			50%	3119	0.97	5.80	2016	279	11.16
			52%	3376	1.04	6.30	2081	305	11.07
			54%	3578	1.1	6.80	2144	327	10.92
			56%	3722	1.14	7.20	2206	351	10.6
			58%	3947	1.21	7.80	2274	379	10.41
			60%	4053	1.25	8.30	2333	401	10.09
			62%	4348	1.34	9.00	2391	437	9.96
			64%	4507	1.39	9.50	2456	459	9.82
			66%	4692	1.44	10.10	2511	488	9.62
			68%	4846	1.5	10.70	2589	516	9.38
			70%	5115	1.57	11.40	2645	553	9.24
			75%	5496	1.69	12.60	2735	610	9.01
			80%	6070	1.85	14.60	2932	709	8.56
			90%	7285	2.23	19.00	3223	922	7.89
			100%	8629	2.62	24.20	3517	1176	7.33
U10II KV100	12S (48V)	T-MOTOR G29*9.5″ CF	40%	2424	0.77	3.90	1583	190	12.79	64.7 (Ambient Temperature: 20℃)
			42%	2611	0.85	4.40	1654	214	12.21
			44%	2859	0.91	4.80	1724	235	12.17
			46%	3026	0.98	5.30	1791	258	11.73
			48%	3480	1.09	6.20	1909	301	11.54
			50%	3556	1.14	6.60	1962	319	11.14
			52%	3851	1.22	7.20	2044	350	11.01
			54%	4090	1.29	7.80	2102	379	10.8
			56%	4270	1.35	8.30	2162	405	10.54
			58%	4439	1.4	8.90	2227	431	10.31
			60%	4701	1.49	9.60	2293	468	10.04
			62%	4913	1.55	10.20	2348	495	9.91
			64%	5156	1.63	10.90	2401	530	9.73
			66%	5282	1.67	11.50	2458	557	9.49
			68%	5587	1.76	12.30	2509	598	9.33
			70%	5737	1.82	12.90	2561	627	9.14
			75%	6353	2.01	14.90	2712	724	8.77
			80%	6938	2.19	16.90	2833	821	8.44
			90%	8350	2.58	21.70	3114	1055	7.91
			100%	9561	3.04	27.70	3392	1344	7.11
U10II KV100	12S (48V)	T-MOTOR G30*10.5″ CF	40%	2921	0.96	4.60	1544	226	12.93	82.2 (Ambient Temperature: 20℃)
			42%	3120	1.05	5.20	1613	253	12.35
			44%	3369	1.11	5.70	1682	278	12.12
			46%	3498	1.19	6.30	1752	304	11.49
			48%	3794	1.27	6.90	1817	334	11.37
			50%	4208	1.41	8.00	1918	388	10.84
			52%	4401	1.47	8.50	1971	412	10.69
			54%	4698	1.55	9.20	2023	446	10.53
			56%	4855	1.64	9.80	2076	478	10.15
			58%	5119	1.73	10.60	2151	515	9.94
			60%	5418	1.8	11.30	2212	550	9.85
			62%	5478	1.86	12.00	2270	582	9.42
			64%	5834	1.96	12.80	2319	624	9.34
			66%	6012	2.02	13.50	2375	656	9.16
			68%	6242	2.1	14.40	2427	698	8.94
			70%	6502	2.19	15.20	2475	738	8.81
			75%	6982	2.35	17.20	2614	834	8.36
			80%	7836	2.62	19.90	2729	967	8.1
			90%	9343	3.06	25.30	2977	1229	7.6
			100%	10600	3.59	32.40	3240	1571	6.74
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

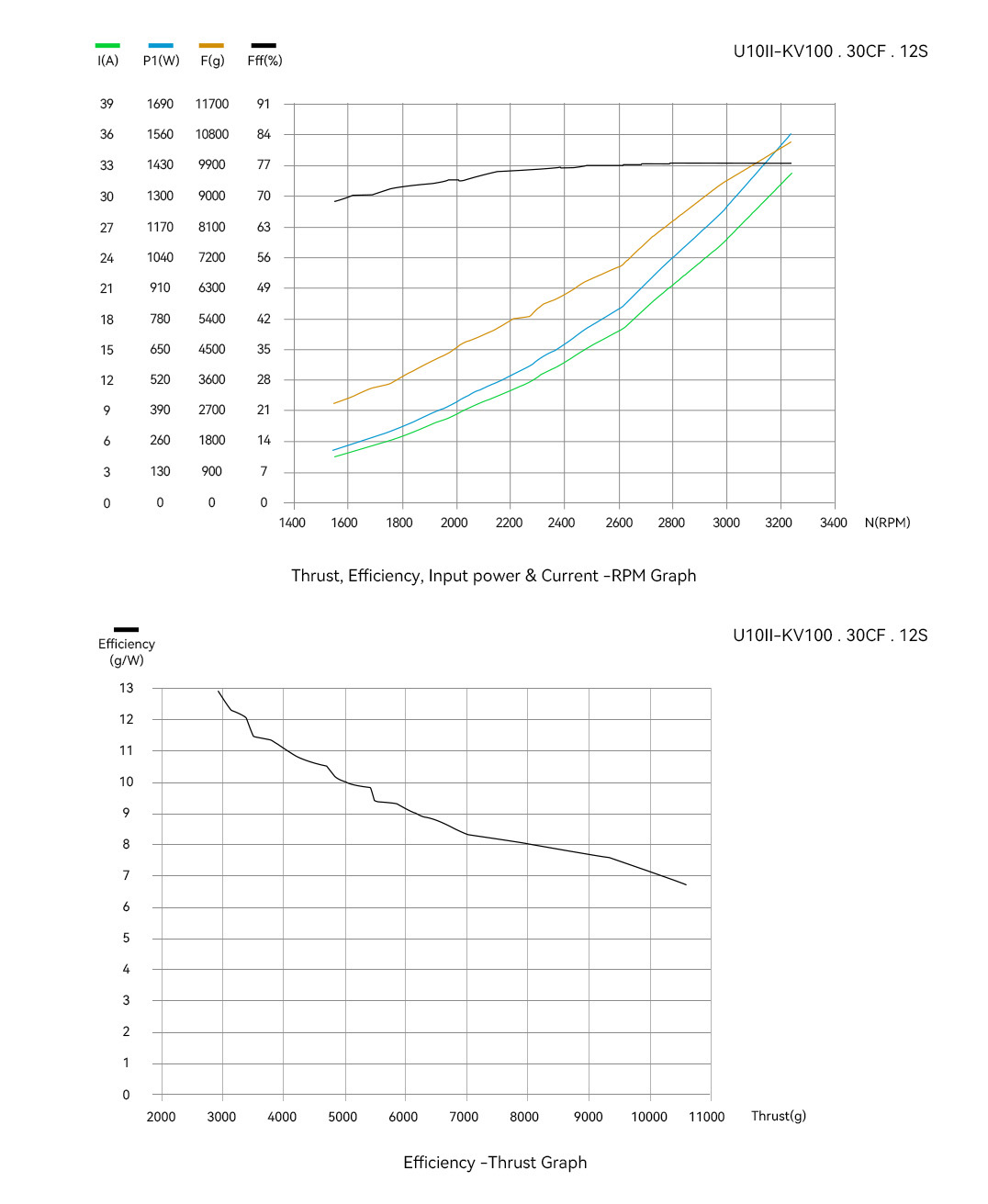

Analysis Chart

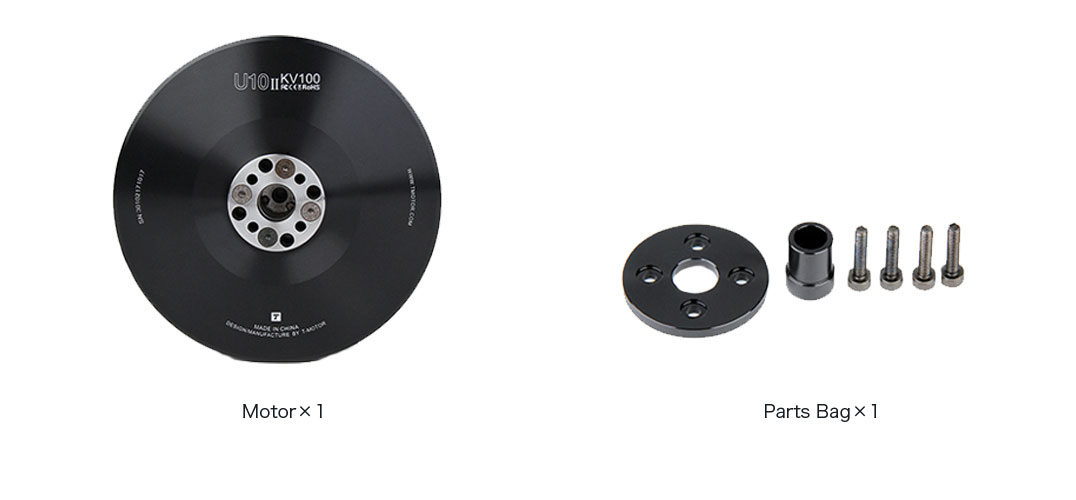

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to “ [email protected] ” in time.
