AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor KV220

$179.00

T-Motor AT5330A is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category. Features with excellent heat dissipation structure which ensures the powerful flight. 3500W

10 in stock

Add to Wishlist
Add to Wishlist
SKU: T-MOTOR-AT5330A Category: Brand:

Description

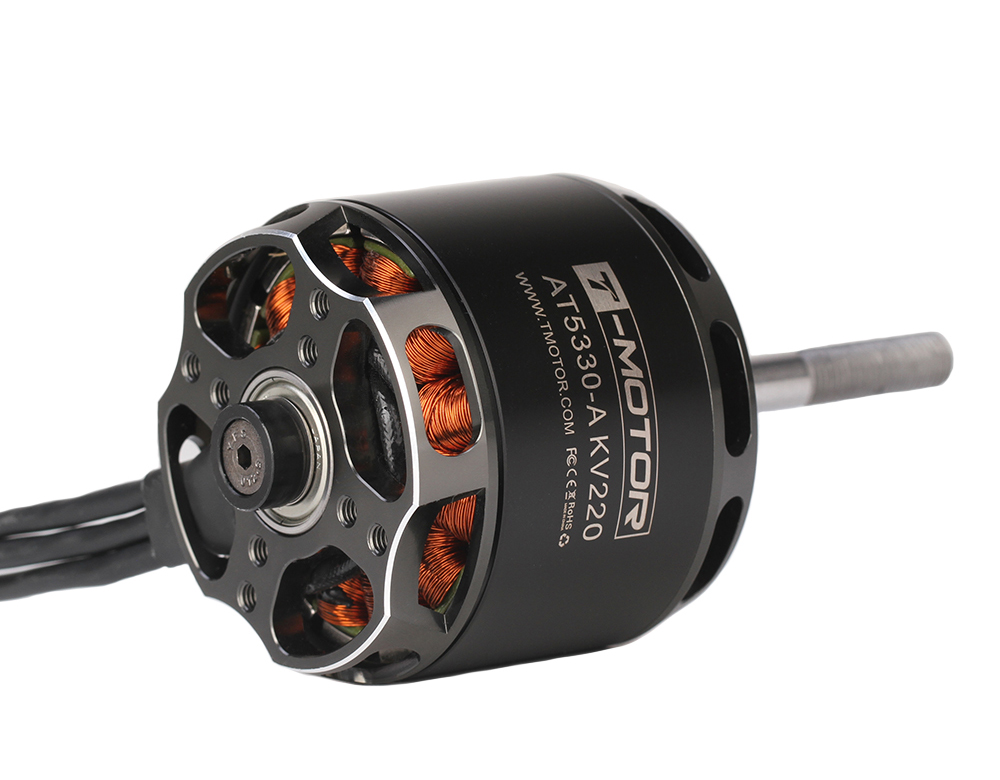

About T-MOTOR AT5330A 25-30CC VTOL Fixed Wing Aircraft Shaft Motor

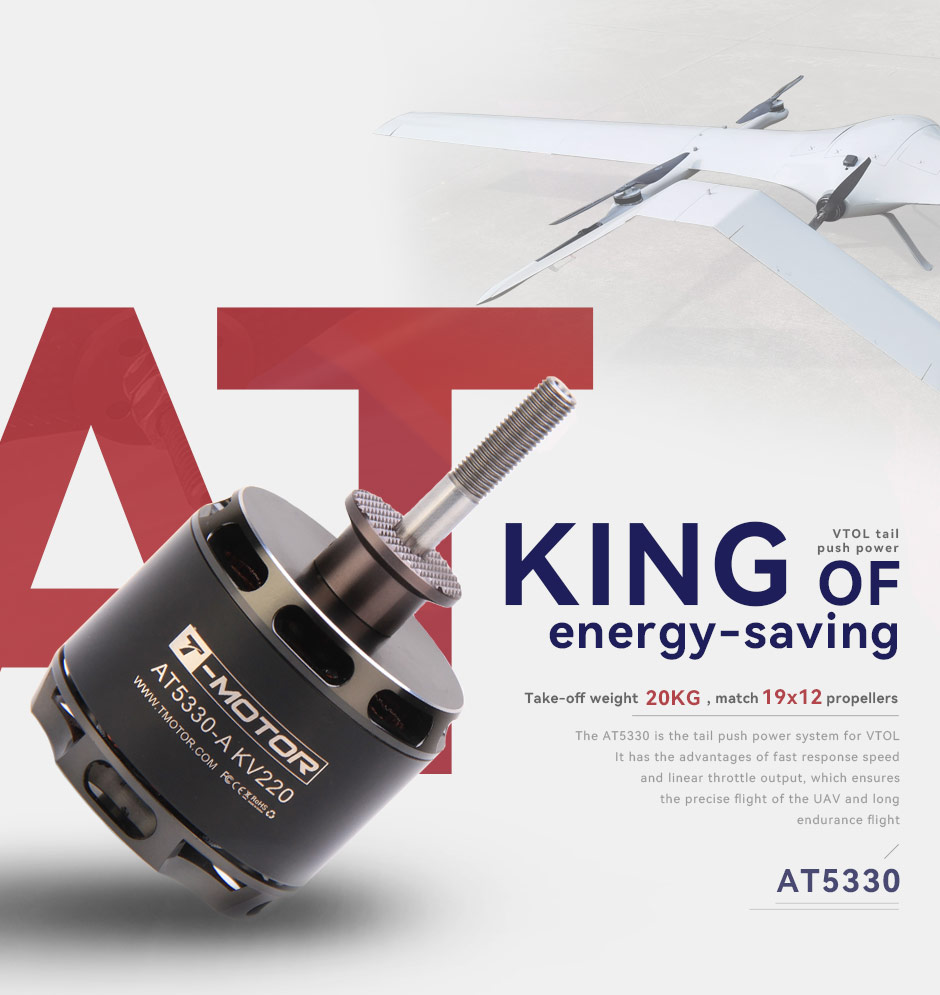

T-Motor AT5330A is a hi-end motor suitable for VTOL UAV fixed wing larger airplanes of the Outdoor category.

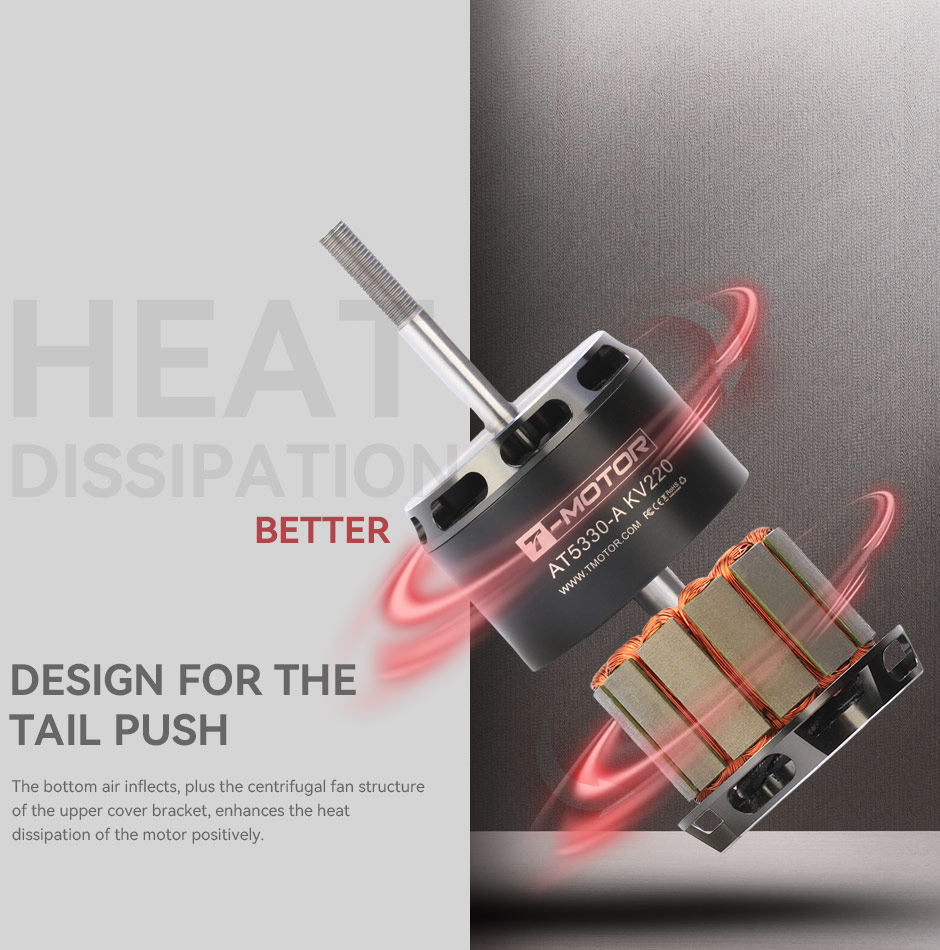

features with excellent heat dissipation structure which ensures the powerful flight. 3500W maximum power which give strong power for 30CC RC airplane.

It is support 6-12s lipos with T-Motor AT115A.

AT5330A Highlights:

1 Thanks to the solid structure and high-quality materials, the AT53 series engines provide unparalleled reliability and durability, allowing you to fly with confidence.

2.AT53 series engines use imported high-quality bearings and are designed with structural strength to be durable and reliable. Ensuring optimal engine performance and sustainable service life.

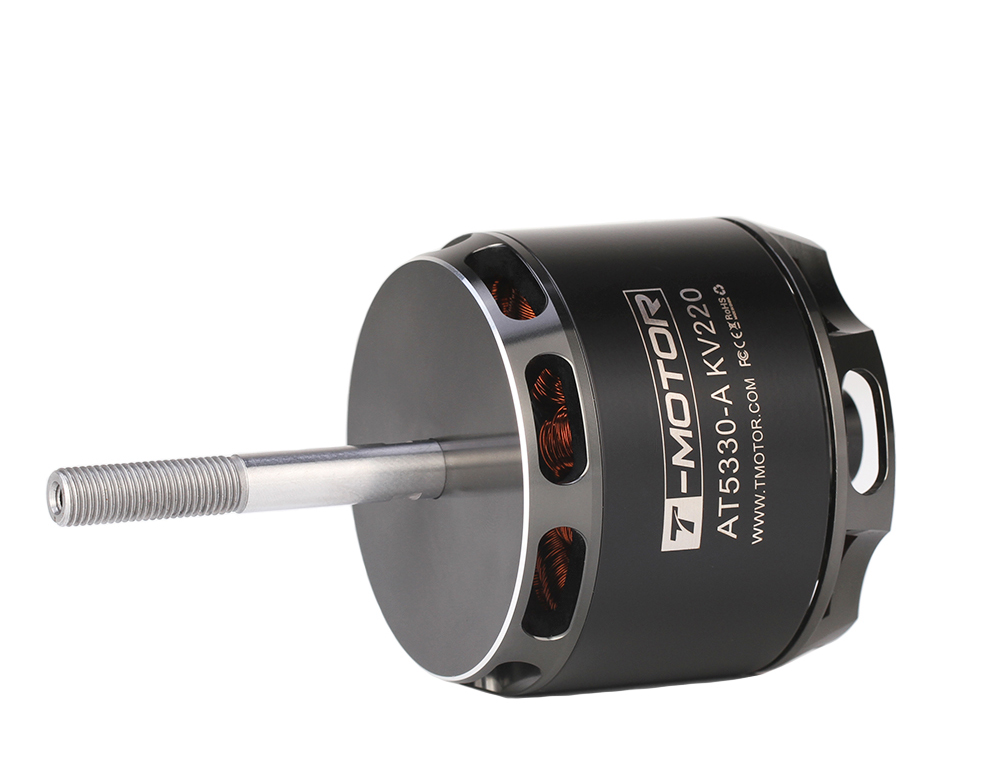

3.The steel shaft is divided into front-out shaft and rear-out shaft to adapt to various installation methods and meet the needs of different application scenarios.

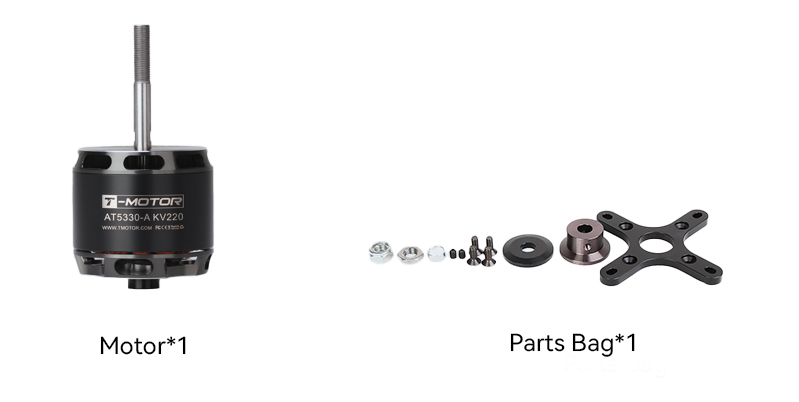

Packing List Includes:

1x T-MOTOR AT5330A Motor

1x Hardware pack


Matching Guide:

AT 115A ESC


Technical Specifications

Model No./KVAT5330 KV220Magnet Temperature Resistance Grade150℃

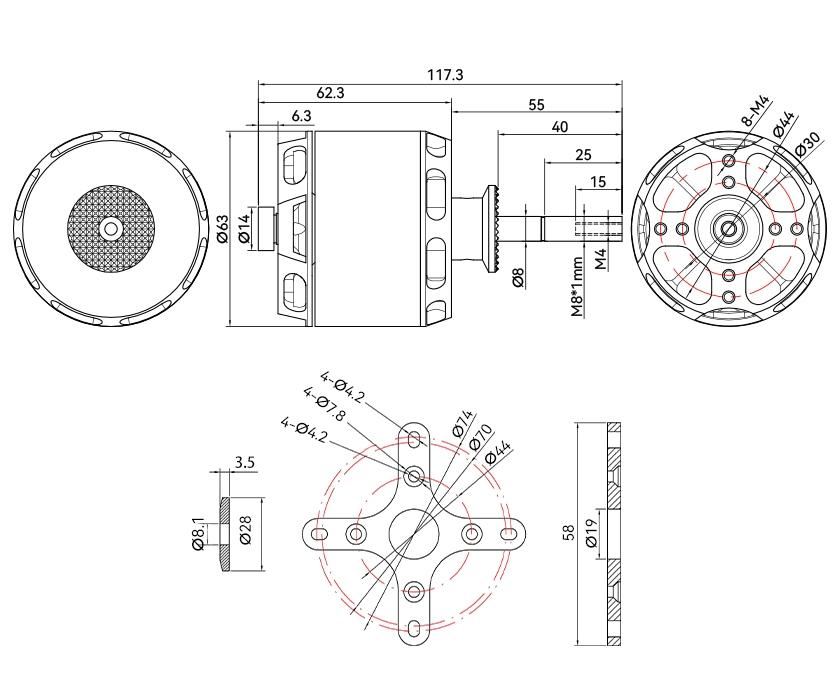

Motor Size (mm)Φ63*117.3Lead (mm)Enameled Wire 100
Stator TechnologyAnti-Rust Treatment;
180°C High Temperature-Resisting Coatings
Enamelled Wires Temperature Resistance GradeClass C 220℃
Configuration12N14PCoil Withdraw Voltage1000V/5s
Shaft Diameter (mm)IN: 10 OUT: 8Rotor Dynamic Balance Standard≤5mg
BearingImported 6800/6900ZZIPIP35
KV ValueKV220Battery (LiPo)/Voltage
Recommendation
12S (4.2V/Sl)/42~52V
Idle Current (18V)3.0AESC RecommendationAT115A (6~12S)

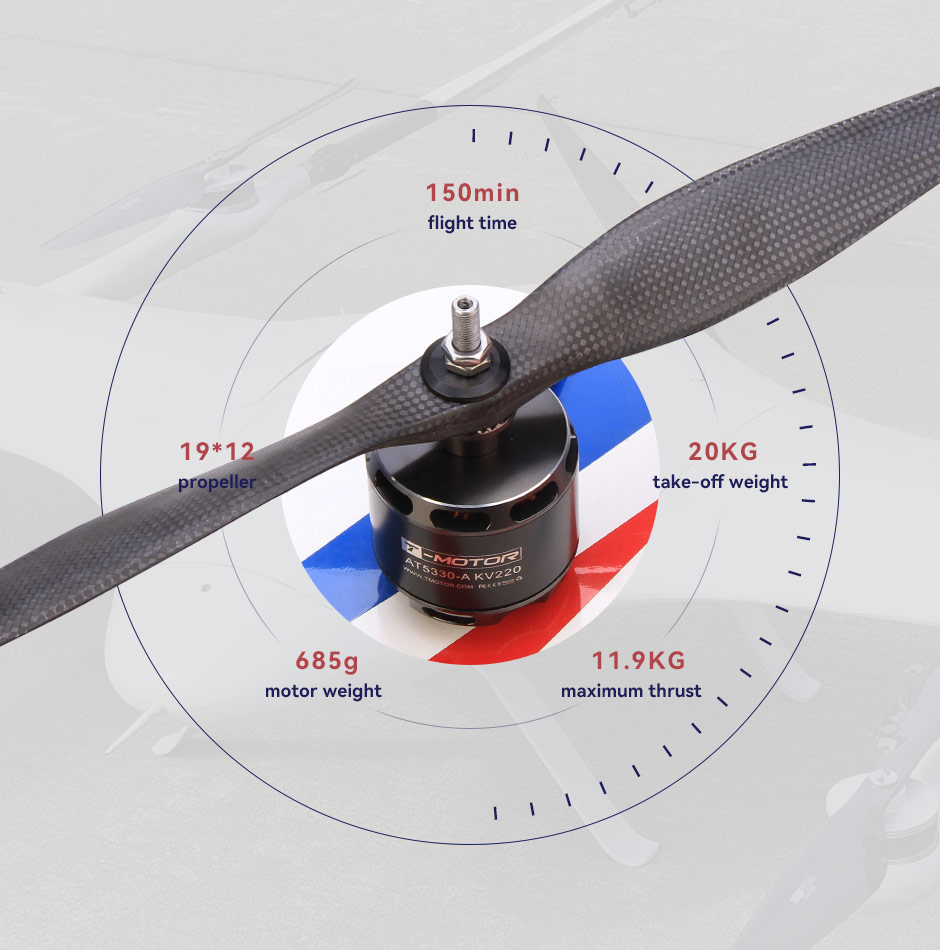

Peak Current (A)75A/Continuous 180sPropeller Recommendation18~20 Inch
Max Power (W)3600W/Continuous 180sMotor Weight (g)Weight (Incl. Cables) 685g
Internal Resistance (mΩ)24Package Weight (g)900g
