MN1130 KV45/KV53

Original price was: $699.00.Current price is: $690.00.

T-MOTOR MN1130 MN Navigator UAV motor. Review the verified variants and full technical specifications before selection.

55 in stock

SKU: MN1130 Category: MN Navigator Type UAV Motors Tags: MN Navigator, T-MOTOR, UAV Motor Brand: T-MOTOR

Description

Description

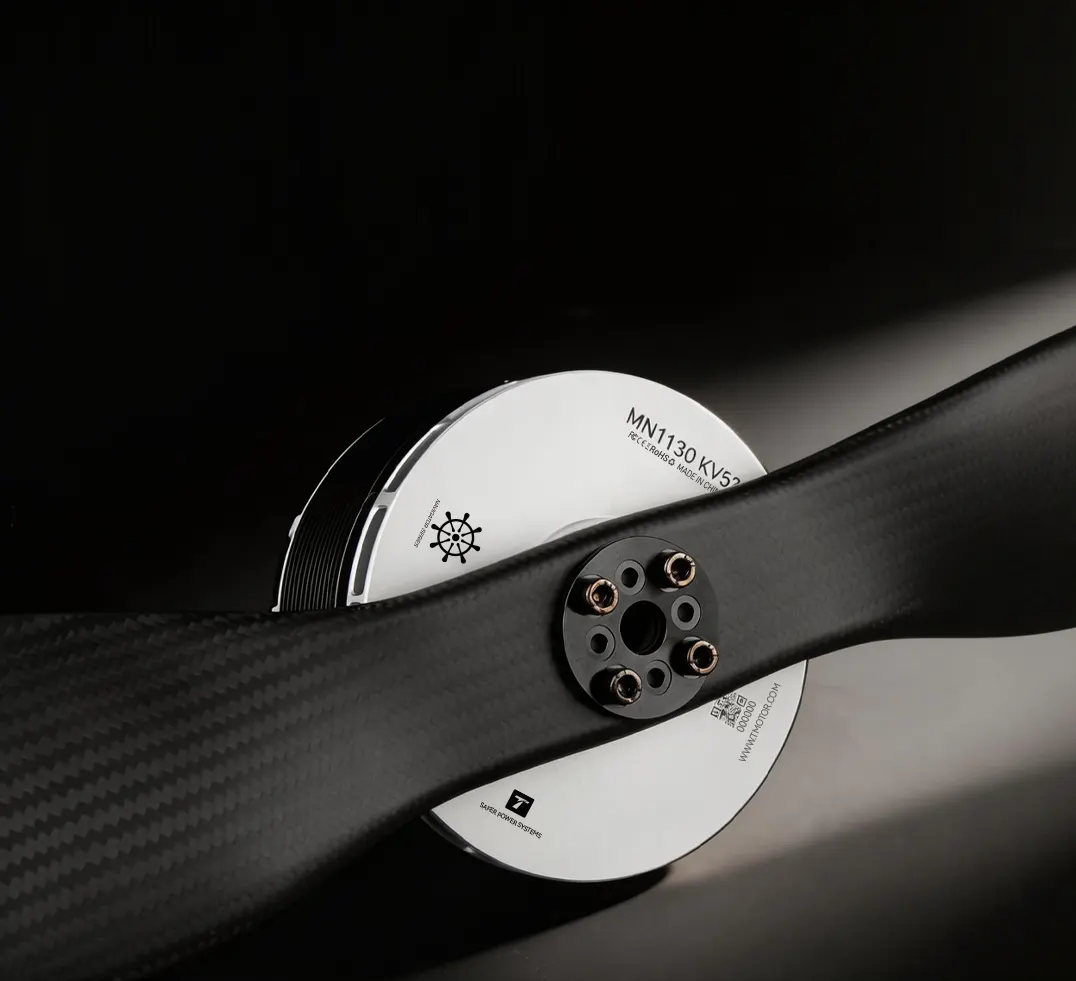

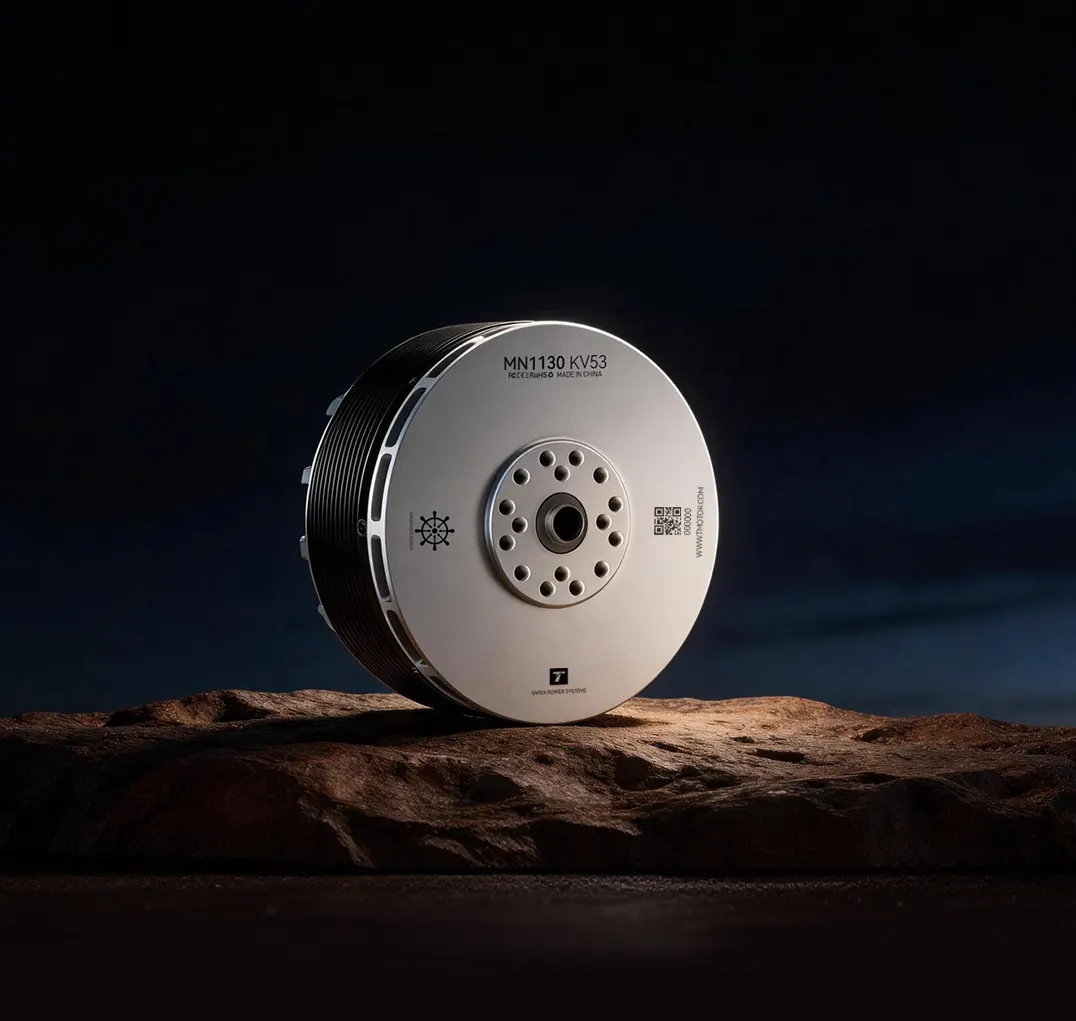

MN1130 UAV Motor

The T-MOTOR MN1130 is a professional UAV motor for aircraft builders selecting a power unit from the MN Navigator range. Available configurations include KV KV45, KV KV53; choose the version that matches your propulsion system. The specification data below is retained exactly so you can verify electrical, mechanical and propeller compatibility before ordering.

Use this MN1130 UAV motor for a new airframe or a matched replacement where the listed dimensions, voltage and load figures meet the project requirements. For best results, pair the T-MOTOR MN1130 with the recommended ESC, propeller and battery values shown in the technical tables.

Product Highlights

Ingress protection: IP45
Maximum thrust: 57.3kg
Rated thrust: 20~25kg
Rated battery: 24S
Motor size: Φ120.5*65.9mm
Motor weight: 1740g

Detail Information

Applicable Configurations

Core Applications

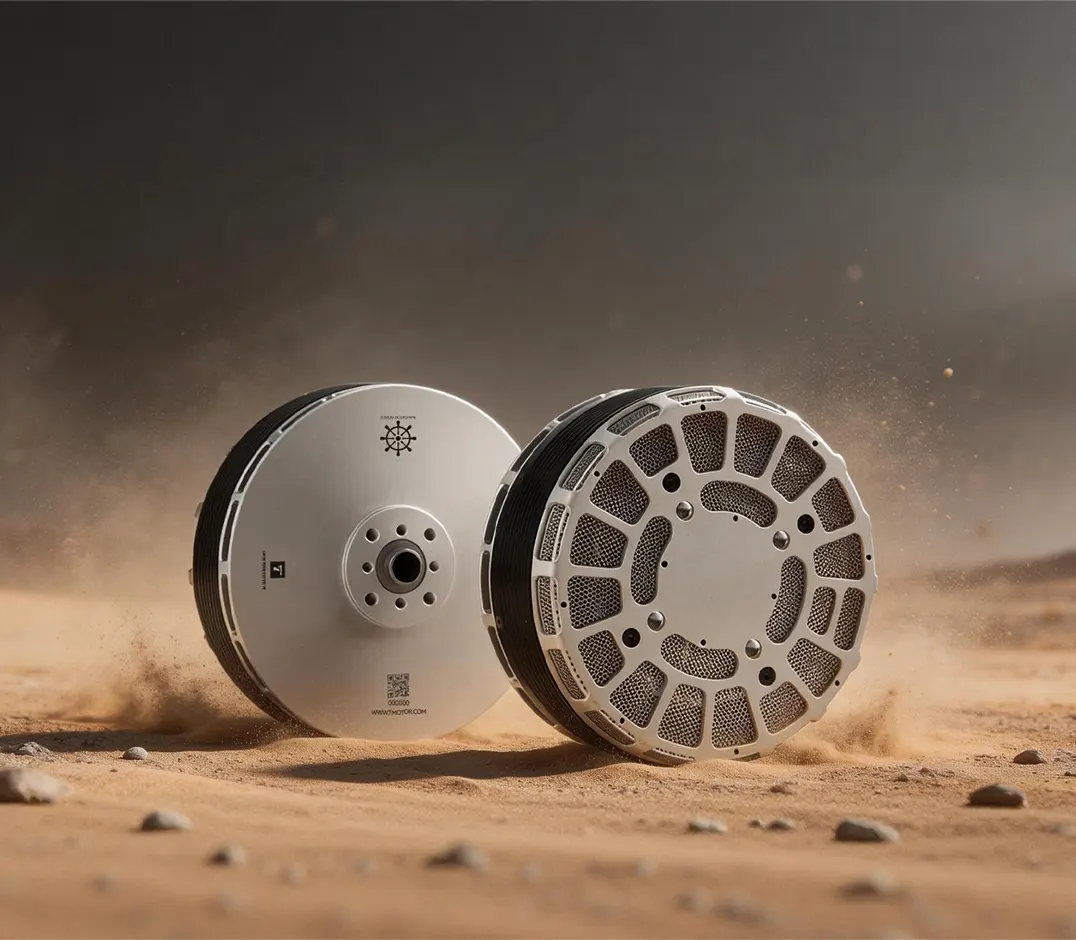

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Integrated High-Efficiency Cooling System

Built-in one-piece die-cast cooling fin structure doubles the heat dissipation area;compared with traditional split cooling structures,

it enables faster heat transfer and higher cooling efficiency, reducing winding temperature by 5~8℃

Specifications

Model No.	MN1130	Motor Size	Φ120.5*65.9mm
Stator Technology	Imported Silicon Steel Sheet; Anti-Rust treatment; 150℃high Temperature-Resisting Coatings	Copper Wire	220℃ High Temperature Resistance
Magnet Level	180℃ High Temperature Resistance	Coil Insulation Test	1000V Withstand Voltage Test
IP	IP45	Configuration	36N40P
Rotor Dynamic Balance Standard	≤30mg	Bearing	Imported 6902ZZ
Output Shaft Diameter	12mm	Wire Specification/ Length	Enameled Wire*150mm

Technical Parameters
KV Value	45	Idle Current (20V)	2.0A
Max Power (180s)	3218W	Internal Resistance	38mΩ
Rated Voltage (Lipo)	24S	Peak Current (180s)	132A
Max Thrust	57.3kg	Motor Weight (Incl. Cable)	1740g
Package Weight	2140g

KV Value	53	Idle Current (20V)	2.4A
Max Power (180s)	2926W	Internal Resistance	28mΩ
Rated Voltage (Lipo)	24S	Peak Current	128A
Max Thrust	52.0kg	Motor Weight (Incl. Cable)	1742g
Package Weight	2120g

Recommended Combinations
Motor	MN1130 KV45	ESC	M200A24S
Propeller	NS45x17.5/NS47x18	Rated Voltage (Lipo)	24S

Motor	MN1130 KV53	ESC	M200A24S
Propeller	VZ40x16.1	Rated Voltage (Lipo)	24S

Test Data

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (g/W)	Torque (N·m)	Operating Temperature (℃)
MN1130 KV45	NS45x17.5	91.94	40%	12.68	1532	11903	1165	11.70	6.34	121℃ (Ambient Temperature: 25)
		91.95	42%	14.41	1598	13017	1325	11.24	6.92
		91.97	44%	16.16	1660	14135	1486	10.86	7.49
		91.99	46%	17.97	1718	15288	1653	10.53	8.07
		91.98	48%	19.93	1780	16433	1833	10.13	8.70
		91.94	50%	22.21	1844	17778	2042	9.81	9.39
		91.95	52%	24.71	1908	19112	2272	9.48	10.09
		91.98	54%	27.30	1969	20466	2511	9.19	10.80
		91.96	56%	29.56	2025	21697	2719	8.92	11.47
		91.98	58%	32.40	2086	23027	2980	8.65	12.19
		92.01	60%	35.76	2148	24612	3290	8.40	13.02
		91.96	62%	38.98	2210	26123	3584	8.16	13.84
		91.98	64%	41.94	2268	27620	3858	7.94	14.65
		91.95	66%	45.70	2322	29044	4203	7.75	15.42
		91.97	68%	49.72	2379	30575	4572	7.56	16.23
		91.93	70%	54.28	2438	32147	4990	7.36	17.12
		91.97	80%	75.59	2707	40166	6952	6.58	21.52
		91.95	90%	97.07	2903	47084	8926	6.13	25.28
		91.97	100%	119.33	3071	53475	10975	5.78	28.76
MN1130 KV45	NS47x18	92.05	40%	15.37	1521	14301	1414	10.11	7.74	HOT (Ambient Temperature: 25)
		92.05	42%	17.24	1583	15498	1587	9.77	8.39
		92.05	44%	19.37	1643	16798	1782	9.42	9.07
		92.05	46%	21.40	1701	17993	1970	9.14	9.72
		92.08	48%	23.70	1761	19361	2182	8.87	10.46
		92.12	50%	26.47	1824	20883	2439	8.56	11.26
		92.06	52%	29.21	1887	22384	2689	8.32	12.07
		92.06	54%	32.08	1947	23792	2953	8.06	12.86
		92.07	56%	34.96	2002	25158	3218	7.82	13.60
		92.05	58%	38.20	2060	26677	3516	7.59	14.42
		92.04	60%	41.69	2121	28351	3838	7.39	15.34
		92.05	62%	45.45	2178	29973	4183	7.17	16.21
		92.06	64%	49.21	2233	31592	4530	6.97	17.10
		92.05	66%	53.04	2285	33178	4882	6.80	17.97
		92.05	68%	57.07	2339	34818	5254	6.63	18.86
		92.08	70%	61.87	2395	36631	5697	6.43	19.85
		92.06	80%	85.88	2647	44855	7906	5.67	24.56
		92.02	90%	107.52	2807	51423	9895	5.20	28.23
		92.07	100%	131.22	2959	57306	12081	4.74	31.61
MN1130 KV53	VZ40x16.1	92.01	40%	13.28	1866	11352	1221	9.29	5.31	110℃ (Ambient Temperature: 25)
		92.00	42%	14.84	1946	12365	1365	9.06	5.78
		92.01	44%	16.82	2030	13478	1548	8.71	6.30
		92.00	46%	18.75	2109	14595	1725	8.46	6.82
		91.98	48%	21.01	2192	15798	1932	8.18	7.38
		92.01	50%	23.64	2272	17131	2175	7.88	8.01
		92.12	52%	26.18	2358	18334	2412	7.60	8.58
		92.00	54%	28.83	2440	19654	2652	7.41	9.20
		92.04	56%	31.80	2518	20999	2927	7.18	9.83
		91.98	58%	35.17	2599	22438	3234	6.94	10.52
		92.03	60%	38.72	2683	24026	3563	6.74	11.27
		92.00	62%	41.94	2758	25505	3859	6.61	11.95
		92.03	64%	46.11	2838	27037	4244	6.37	12.68
		92.01	66%	49.85	2913	28488	4586	6.21	13.39
		92.02	68%	54.06	2990	30077	4974	6.05	14.17
		92.02	70%	58.80	3071	31846	5410	5.89	14.99
		92.04	80%	84.69	3433	40263	7795	5.17	19.07
		92.00	90%	109.25	3701	47354	10051	4.71	22.54
		92.00	100%	128.04	3869	52064	11780	4.42	24.86
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
