MN1315 KV100

Original price was: $799.00.Current price is: $795.00.

T-MOTOR MN1315 MN Navigator UAV motor. Review the verified variants and full technical specifications before selection.

55 in stock

SKU: MN1315 Category: MN Navigator Type UAV Motors Tags: MN Navigator, T-MOTOR, UAV Motor Brand: T-MOTOR

Description

Description

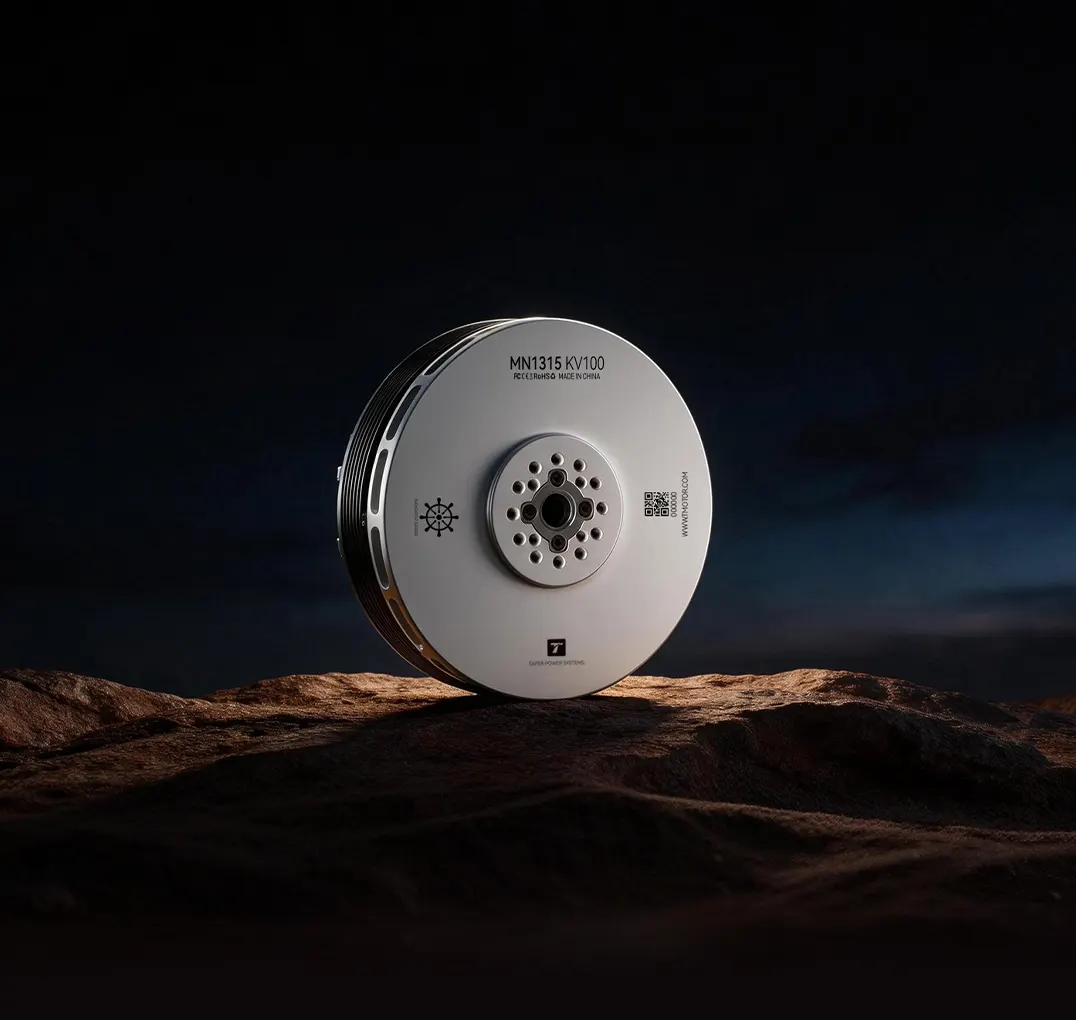

MN1315 UAV Motor

The T-MOTOR MN1315 is a professional UAV motor for aircraft builders selecting a power unit from the MN Navigator range. The specification data below is retained exactly so you can verify electrical, mechanical and propeller compatibility before ordering.

Use this MN1315 UAV motor for a new airframe or a matched replacement where the listed dimensions, voltage and load figures meet the project requirements. For best results, pair the T-MOTOR MN1315 with the recommended ESC, propeller and battery values shown in the technical tables.

Product Highlights

Ingress protection: IP45
Maximum thrust: 50.1kg
Rated thrust: 20~25kg
Rated battery: 14S
Motor size: Φ150*51mm
Motor weight: 1780g

Detail Information

Applicable Configurations

Ultra-Long Service Life and High Reliability

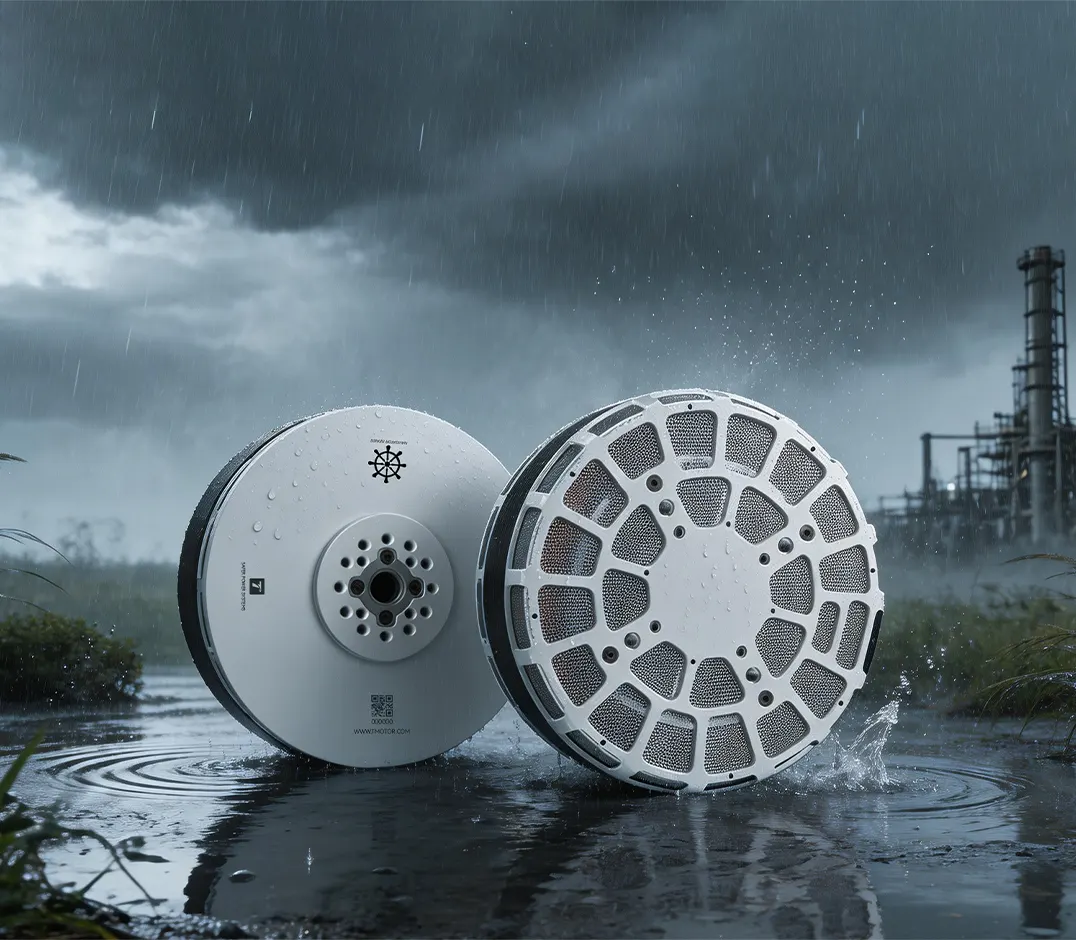

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Specifications

Model No.	MN1315	Motor Size	Φ150*51mm
Stator Technology	150℃ High Temperature-Resisting Coatings	Copper Wire	220℃ High Temperature Resistance
Magnet Level	180℃ High Temperature Resistance	Coil Insulation Test	1000V Withstand Voltage Test
IP	IP45	Configuration	36N42P
Rotor Dynamic Balance Standard	≤30mg	Bearing	Imported 6904ZZ
Output Shaft Diameter	/	Wire Specification/ Length	Enameled Wire*150mm

Technical Parameters
KV Value	100	Idle Current (20V)	5.7A
Max Power (180s)	3300W	Internal Resistance	7.5mΩ
Rated Voltage (Lipo)	14S	Peak Current	248A
Max Thrust	50kg	Motor Weight (Incl. Cable)	1780g
Package Weight	2400g

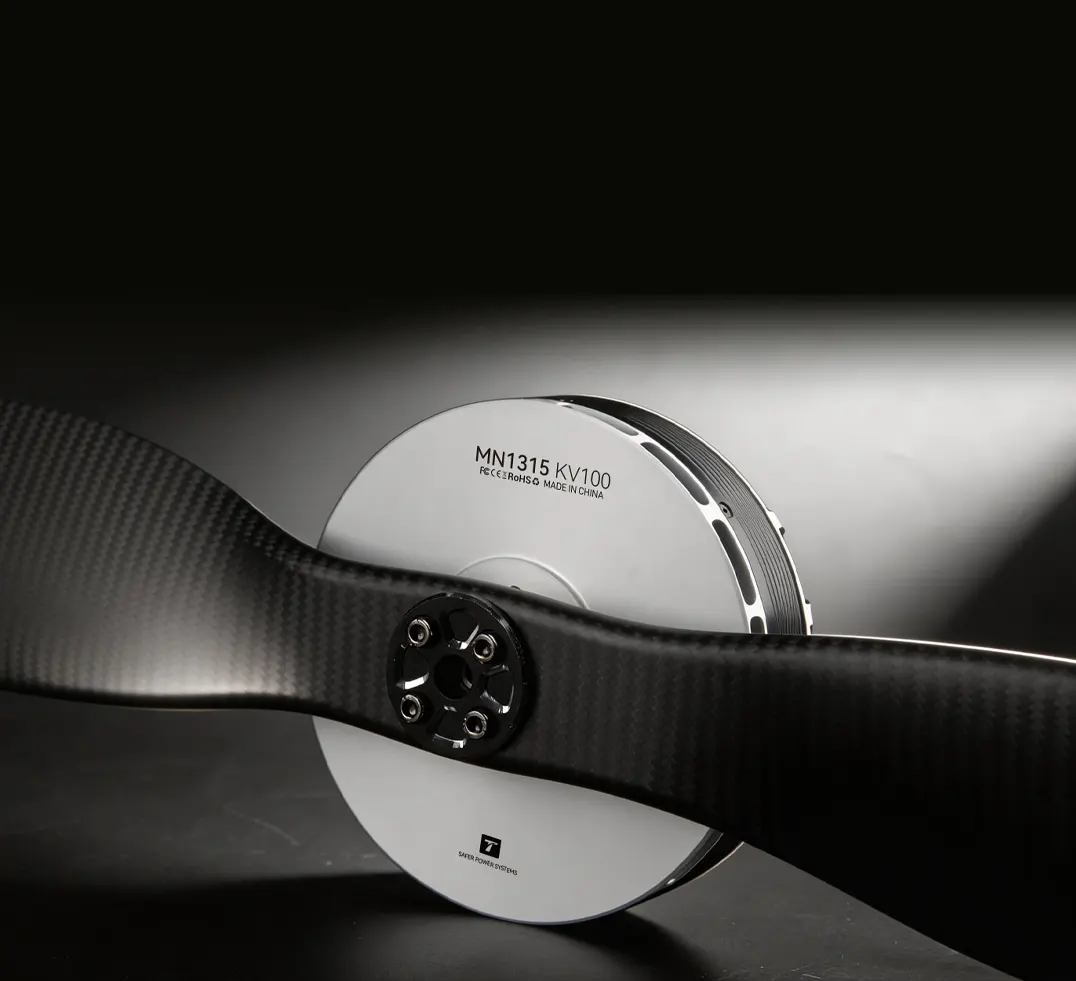

Recommended Combinations
Motor	MN1315 KV100	ESC	M248A14S
Propeller	VZ40x16.1	Rated Voltage (Lipo)	14S

Test Data

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (g/W)	Torque (N·m)	Operating Temperature (℃)
MN1315 KV100	VZ40x16.1	54.02	40%	25.84	1910	11792	1396	8.45	5.56	97℃ (Ambient Temperature: 25)
		54.02	42%	29.77	2004	13021	1608	8.10	6.15
		54.03	44%	33.96	2097	14271	1835	7.78	6.74
		54.10	46%	38.27	2185	15521	2070	7.50	7.33
		54.07	48%	43.29	2282	16873	2341	7.21	7.98
		54.05	50%	48.47	2372	18265	2620	6.97	8.64
		54.04	52%	54.18	2461	19672	2928	6.72	9.31
		54.07	54%	60.21	2549	21157	3255	6.50	10.01
		54.03	56%	66.35	2630	22576	3585	6.30	10.68
		54.05	58%	73.81	2719	24184	3990	6.06	11.46
		54.08	60%	80.99	2801	25803	4380	5.89	12.24
		54.08	62%	88.73	2882	27361	4798	5.70	12.99
		54.09	64%	96.79	2961	28951	5235	5.53	13.75
		54.09	66%	104.93	3034	30497	5676	5.37	14.50
		54.08	68%	114.47	3111	32240	6191	5.21	15.32
		54.10	70%	123.67	3181	33881	6690	5.06	16.12
		54.14	80%	173.45	3489	41641	9391	4.43	19.89
		54.11	90%	228.82	3730	48342	12382	3.90	23.22
		54.13	100%	247.74	3799	50170	13411	3.74	24.17
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
