Name: MN1320 KV49
Brand: T-MOTOR
SKU: MN1320
Price: 929.00 USD
Availability: InStock

MN1320 KV49

$929.00

T-MOTOR MN1320 MN Navigator UAV motor. Review the verified variants and full technical specifications before selection.

55 in stock

SKU: MN1320 Category: MN Navigator Type UAV Motors Tags: MN Navigator, T-MOTOR, UAV Motor Brand: T-MOTOR

Description

Description

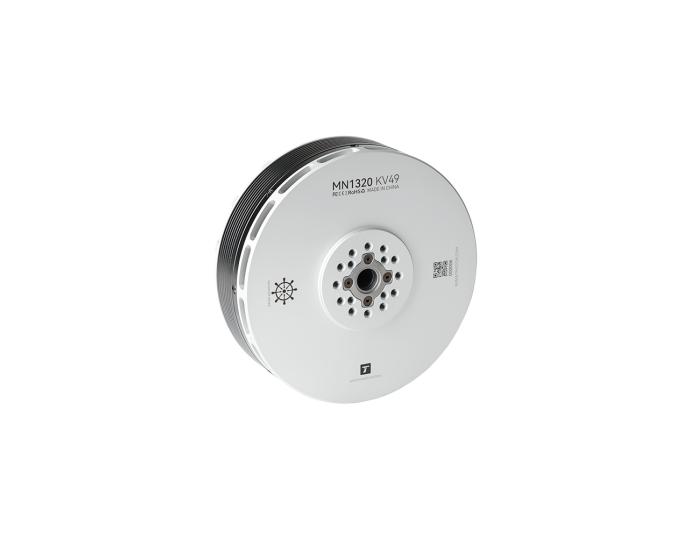

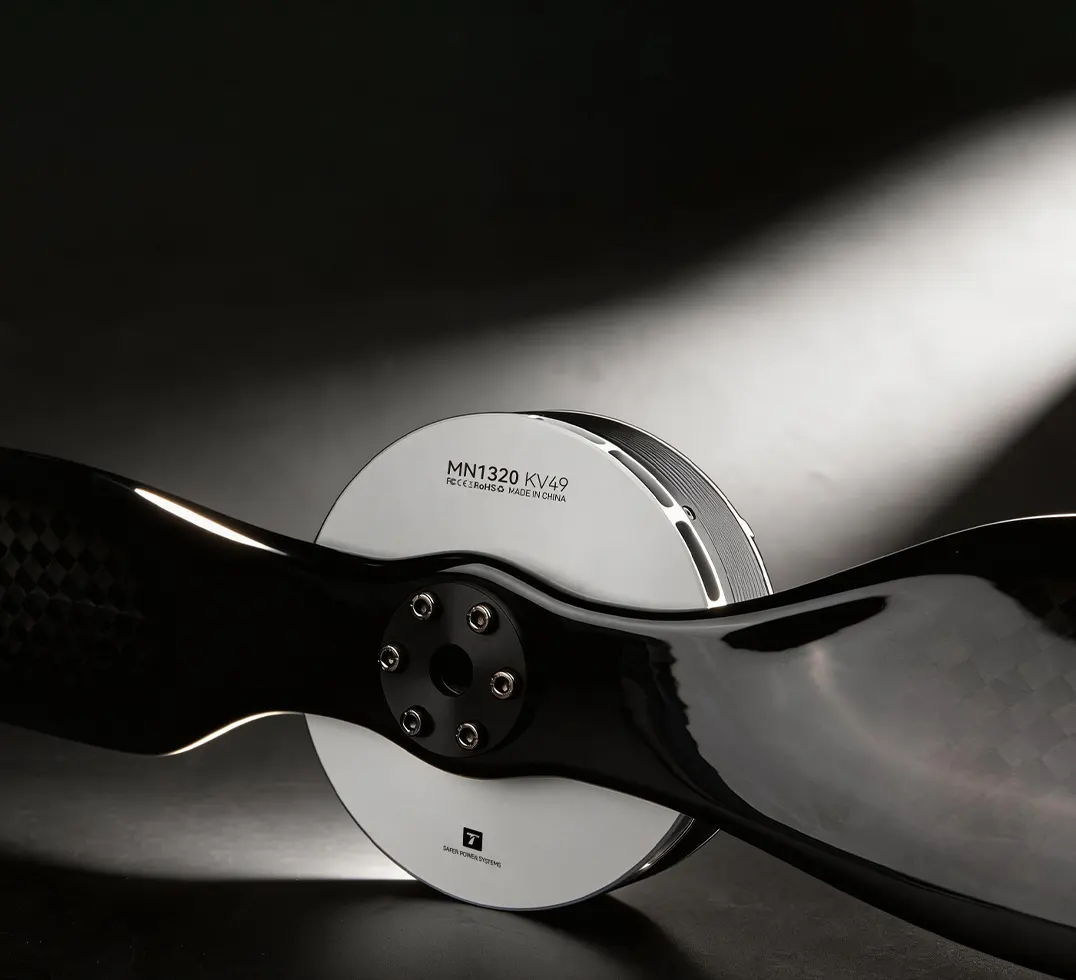

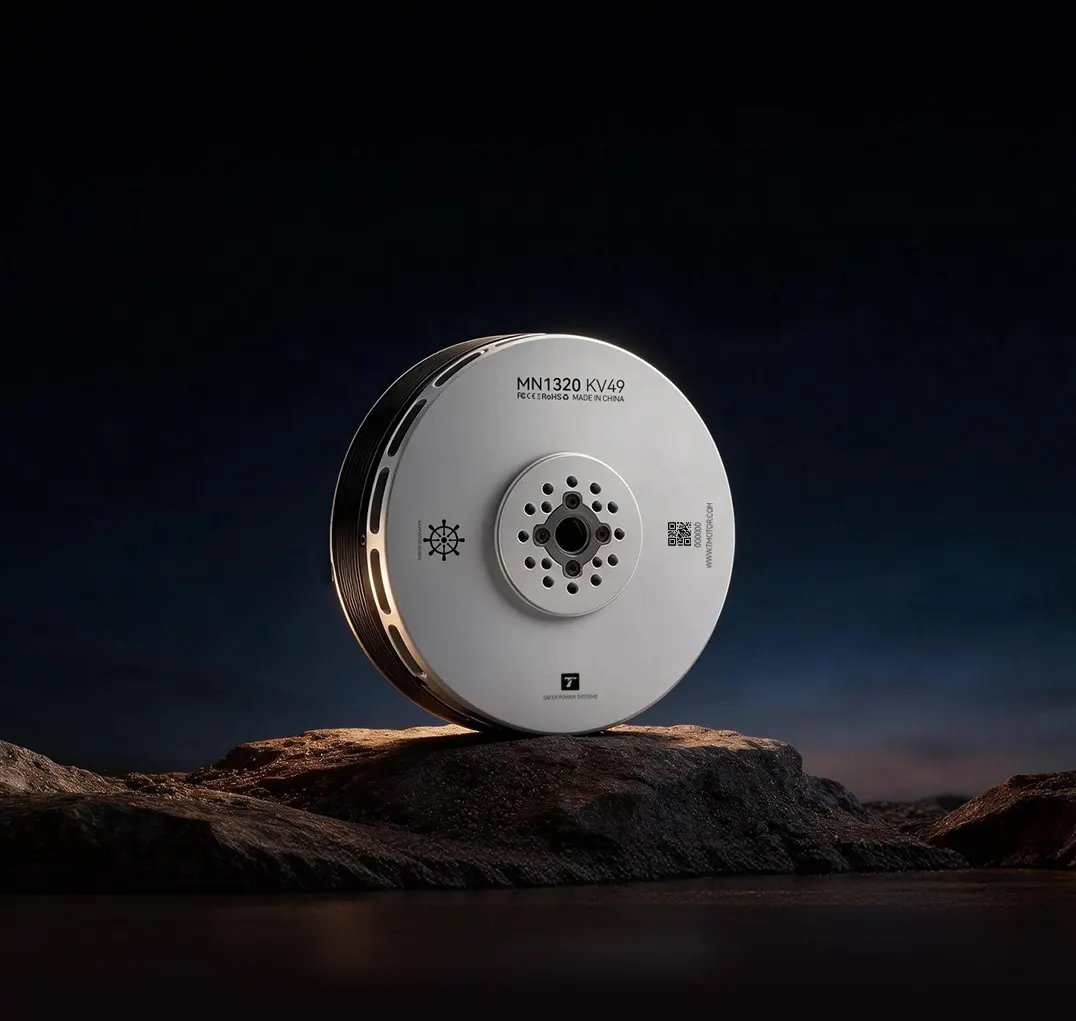

MN1320 UAV Motor

The T-MOTOR MN1320 is a professional UAV motor for aircraft builders selecting a power unit from the MN Navigator range. The specification data below is retained exactly so you can verify electrical, mechanical and propeller compatibility before ordering.

Use this MN1320 UAV motor for a new airframe or a matched replacement where the listed dimensions, voltage and load figures meet the project requirements. For best results, pair the T-MOTOR MN1320 with the recommended ESC, propeller and battery values shown in the technical tables.

Product Highlights

Ingress protection: IP45
Maximum thrust: 58.9kg
Rated thrust: 25~28kg
Rated battery: 24S

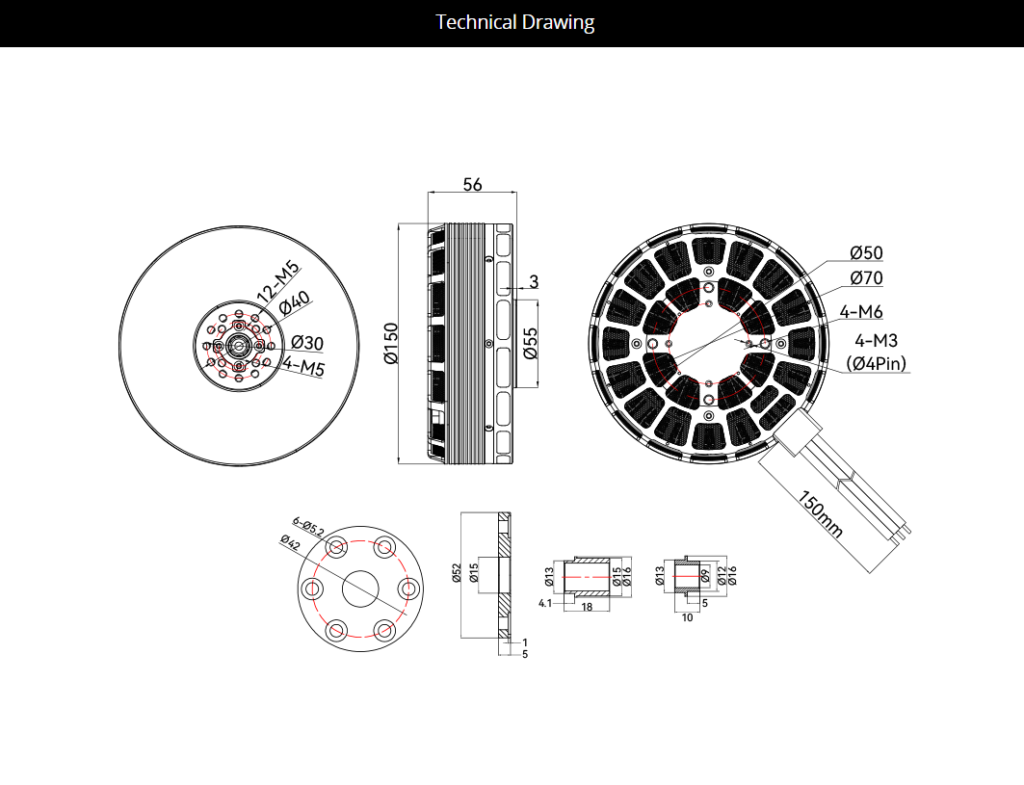

Motor size: Φ150*56mm
Motor weight: 2070g

Detail Information

Applicable Configurations

Core Applications

Ultra-Long Service Life and High Reliability

Dual Dust-Mesh Structure for Rotor and Stator

IP45 protection standard, balancing lightweight design with protective performance

Specifications

Model No.	MN1320	Motor Size	Φ150*56mm
Stator Technology	150℃ High Temperature-Resisting Coatings	Copper Wire	220℃ High Temperature Resistance
Magnet Level	180℃ High Temperature Resistance	Coil Insulation Test	1000V Withstand Voltage Test
IP	IP45	Configuration	36N42P
Rotor Dynamic Balance Standard	≤30mg	Bearing	Imported 6904ZZ
Output Shaft Diameter	/	Wire Specification/ Length	Enameled Wire*150mm

Technical Parameters
KV Value	49	Idle Current (20V)	3.2A
Max Power (180s)	2900W	Internal Resistance	20.5mΩ
Rated Voltage (Lipo)	24S	Peak Current	150A
Max Thrust	58kg	Motor Weight (Incl. Cable)	2070g
Package Weight	2640g

Recommended Combinations
Motor	MN1320 KV49	ESC	M200A24S
Propeller	NS45x17.5	Rated Voltage (Lipo)	24S

Test Data

Type	Propeller	Voltage (V)	Throttle	Current (A)	RPM	Thrust (gf)	Power (W)	Efficiency (g/W)	Torque (N·m)	Operating Temperature (℃)
MN1320 KV49	NS45x17.5	91.94	40%	14.01	1553	12378	1288	9.61	6.54	93℃ (Ambient Temperature: 25)
		91.95	42%	16.17	1633	13739	1486	9.24	7.26
		91.98	44%	18.59	1712	15182	1710	8.88	8.03
		91.98	46%	21.12	1787	16663	1943	8.58	8.80
		91.98	48%	23.98	1865	18261	2206	8.28	9.64
		91.99	50%	27.35	1946	20015	2516	7.96	10.57
		92.00	52%	30.79	2023	21743	2832	7.68	11.52
		91.98	54%	34.50	2099	23442	3173	7.39	12.44
		91.98	56%	38.15	2170	25130	3509	7.16	13.35
		91.94	58%	42.38	2242	27015	3897	6.93	14.37
		91.94	60%	47.01	2318	28986	4322	6.71	15.44
		91.93	62%	51.69	2389	30984	4751	6.52	16.51
		91.94	64%	57.06	2458	32985	5246	6.29	17.60
		91.95	66%	61.82	2521	34959	5684	6.15	18.68
		91.95	68%	67.13	2587	37010	6173	6.00	19.80
		91.90	70%	73.63	2653	39107	6767	5.78	20.98
		91.91	80%	90.49	2830	44480	8323	5.34	24.07
		91.93	90%	126.87	3108	54596	11662	4.68	29.84
		91.81	100%	148.96	3218	58958	13675	4.31	32.44
Notes: Motor temperature is the motor surface temperature aftering running on 80% for 10 min. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation. )
