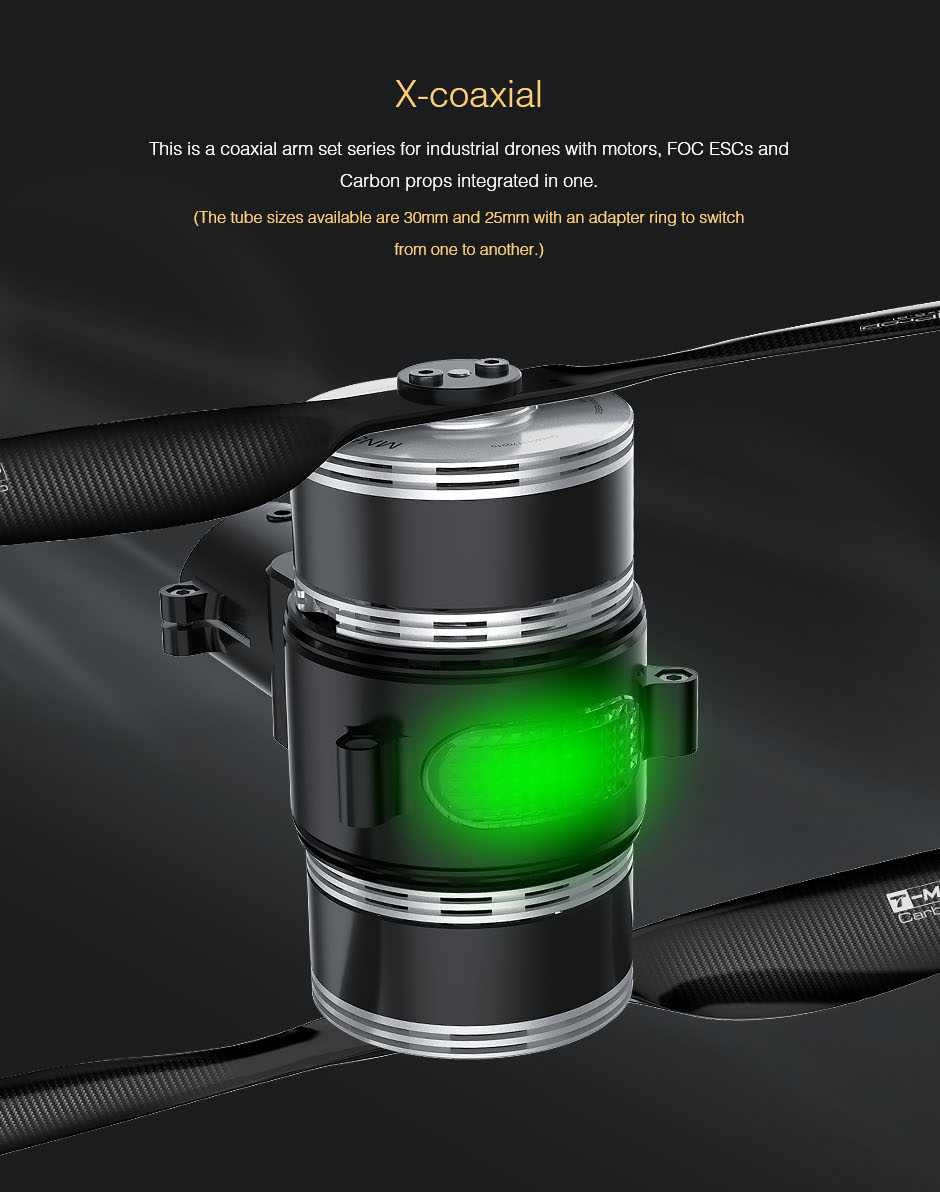

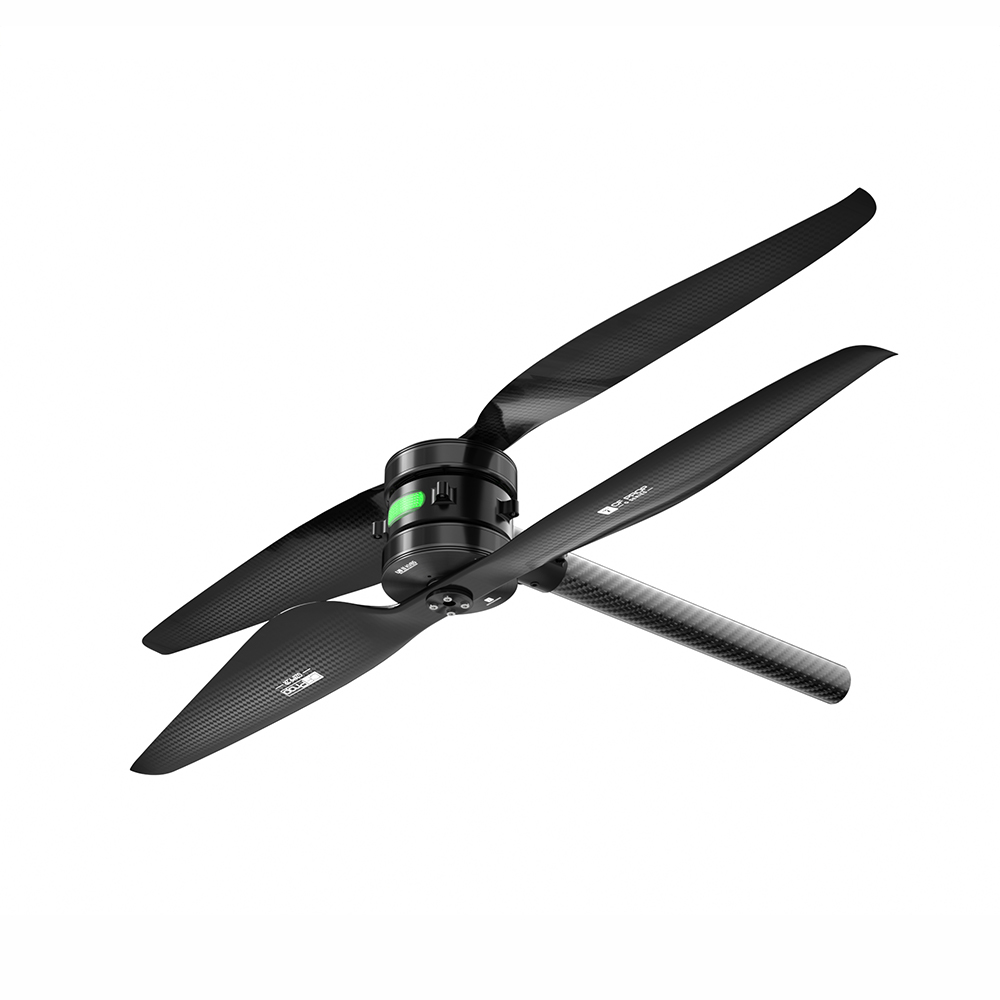

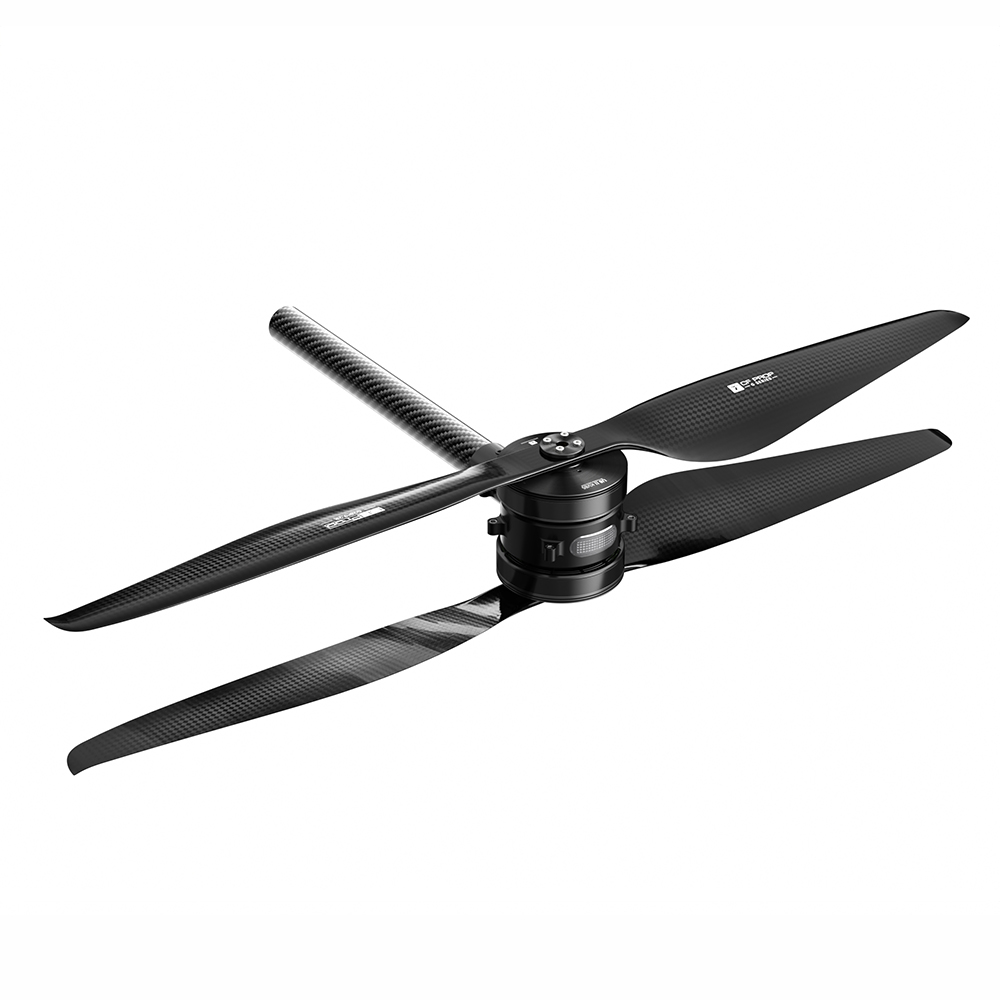

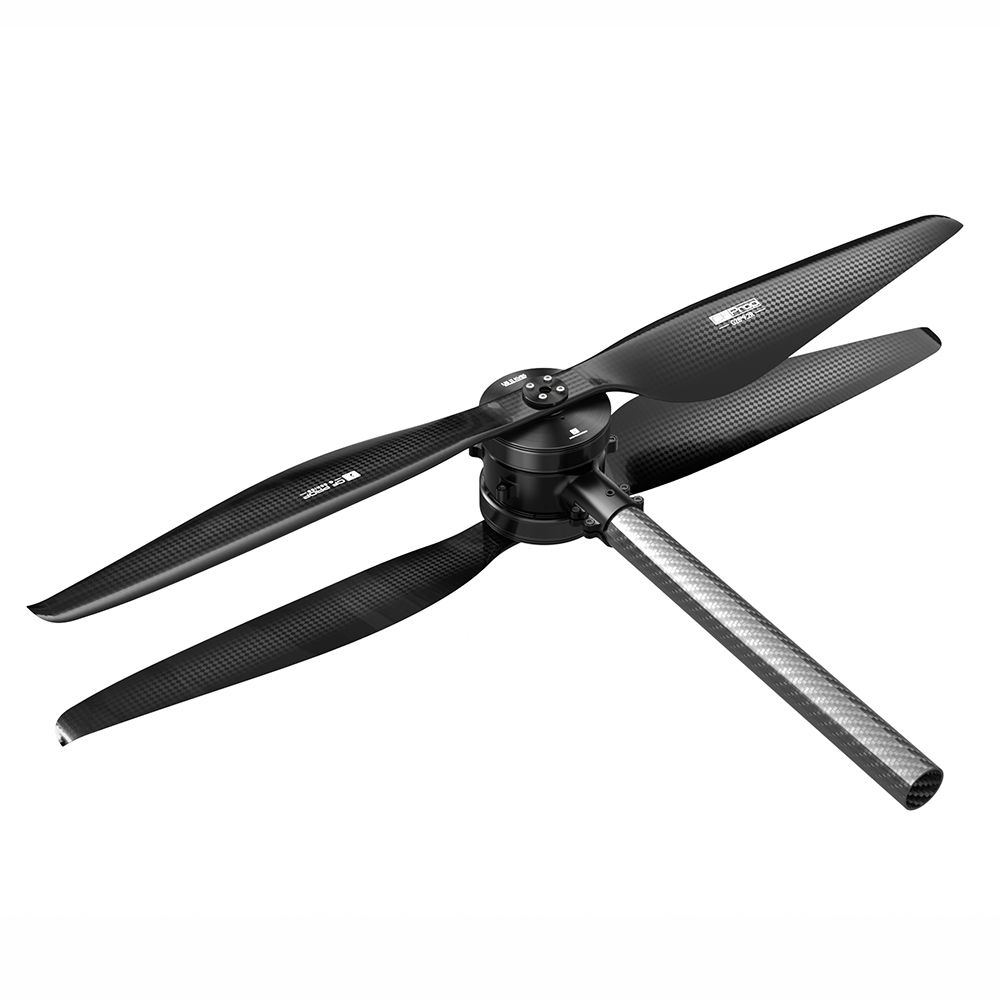

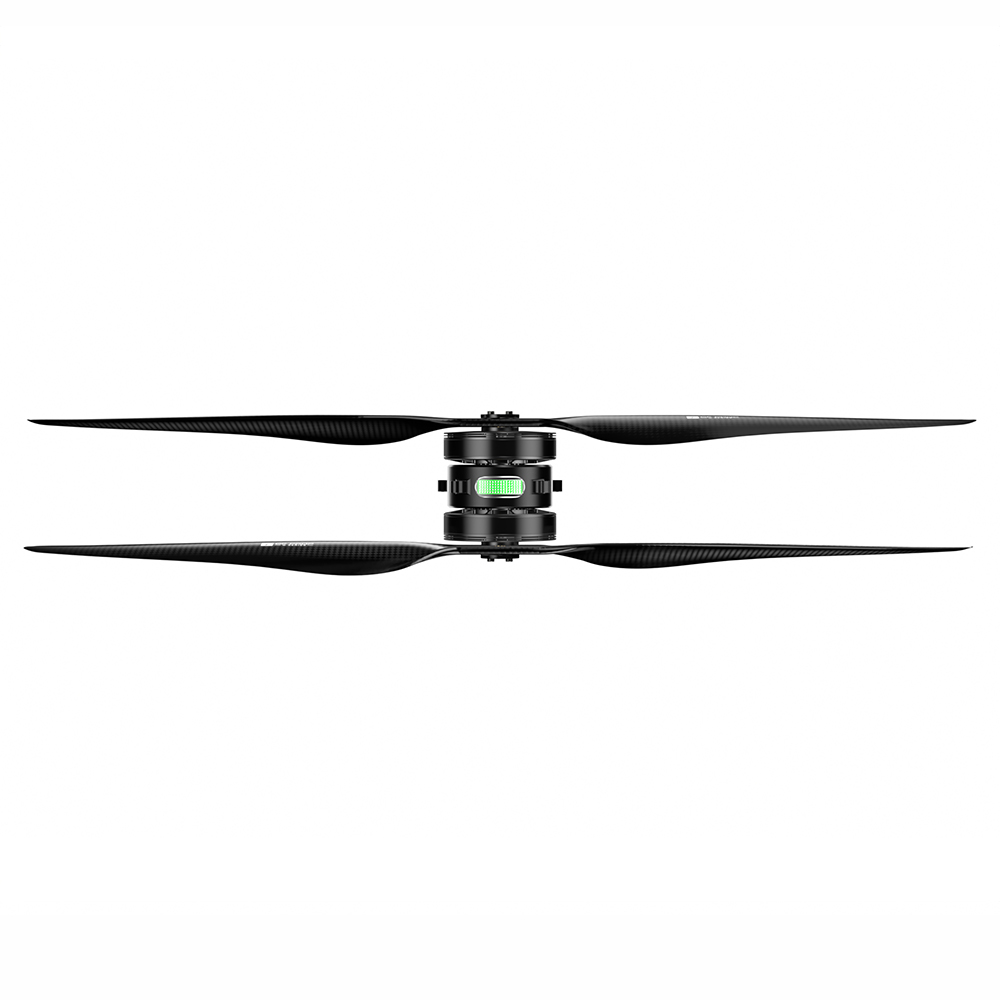

X-U8Ⅱ Combo Pack Coaxial Type (Integrated Propulsion System ) UAV Motor
$795.00
T-MOTOR X-U8 II Integrated Propulsion offers reliable thrust, efficient power, and seamless integration, perfect for UAVs in aerial applications.
Description
Detail Information
- Polymer propellers are not recommended for coaxial setups

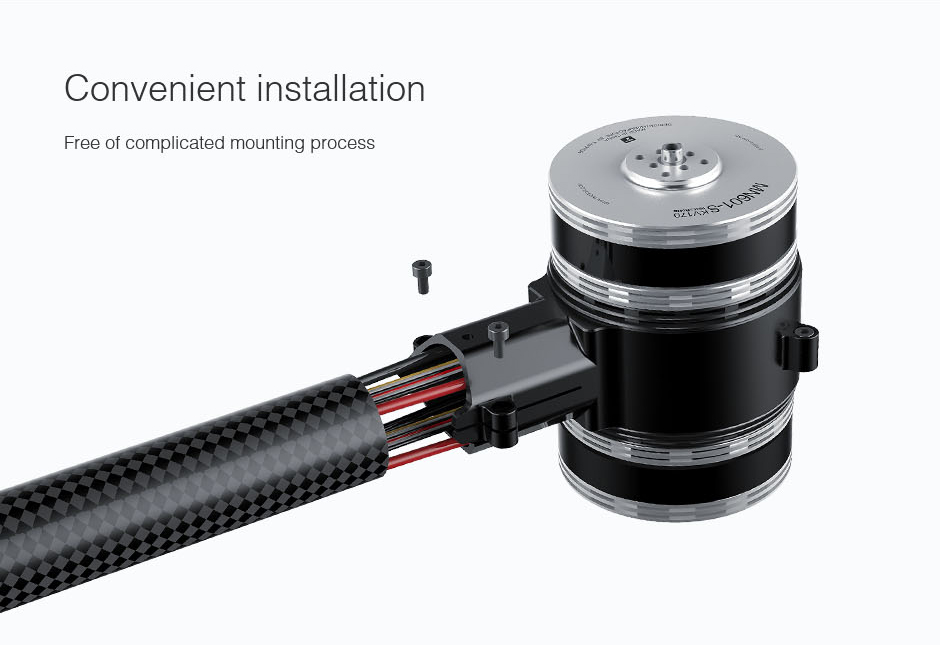

- Free of complicated mounting process
- Turn-key system, perfect compatibility, superb cost performance
- Fast and convenient
Specifications
| Model | X-U8IIKV85 | Lead Cable Length | 600mm |
| Dimension | 130.5*87.1*91.2mm | Arm Set Weight(Incl. Cable) | 965g |
| Configuration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current (24V) | 0.6A | Rated Voltage (Lipo) | 12S |
| Internal Resistance | 225mΩ | ESCRecommendation | ALPHA 60A 12S V1.2 |
| Max. Power (180s) | 238W | PropellerRecommendation | G28*9.2 |
| Model | X-U8II KV100 | Lead Cable Length | 600mm |
| Dimension | 130.5*87.1*91.2mm | Arm Set Weight(Incl. Cable) | 945g |
| Configuration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current (24V) | 0.8A | Rated Voltage (Lipo) | 12S |
| Internal Resistance | 170mΩ | ESCRecommendation | ALPHA 60A 12S V1.2 |
| Max. Power (180s) | 440W | PropellerRecommendation | G28*9.2 |
| Model | X-U8II KV150 | Lead Cable Length | 600mm |
| Dimension | 130.5*87.1*91.2mm | Arm Set Weight(Incl. Cable) | 945g |
| Configuration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current (24V) | 1.3A | Rated Voltage (Lipo) | 6S |
| Internal Resistance | 85mΩ | ESCRecommendation | ALPHA 60A 6S |
| Max. Power (180s) | 196W | PropellerRecommendation | G28*9.2 |
| Model | X-U8II KV190 | Lead Cable Length | 600mm |
| Dimension | 130.5*87.1*91.2mm | Arm Set Weight(Incl. Cable) | 945g |
| Configuration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current (24V) | 1.7A | Rated Voltage (Lipo) | 6S |
| Internal Resistance | 48mΩ | ESCRecommendation | ALPHA 60A 6S V |
| Max. Power (180s) | 342W | PropellerRecommendation | G28*9.2 |

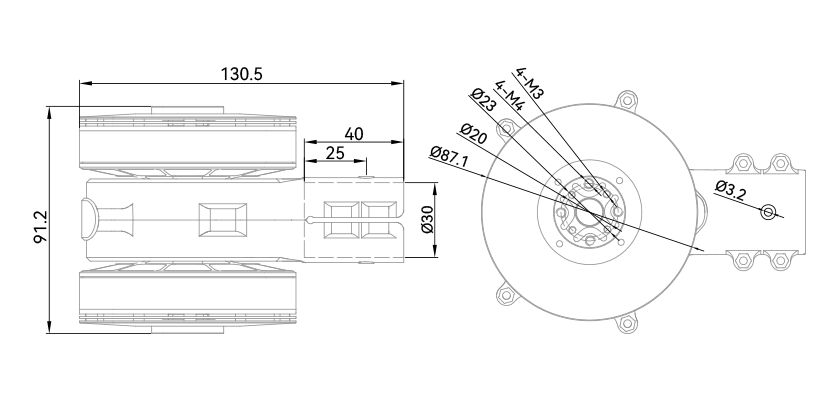

Technical Drawing
