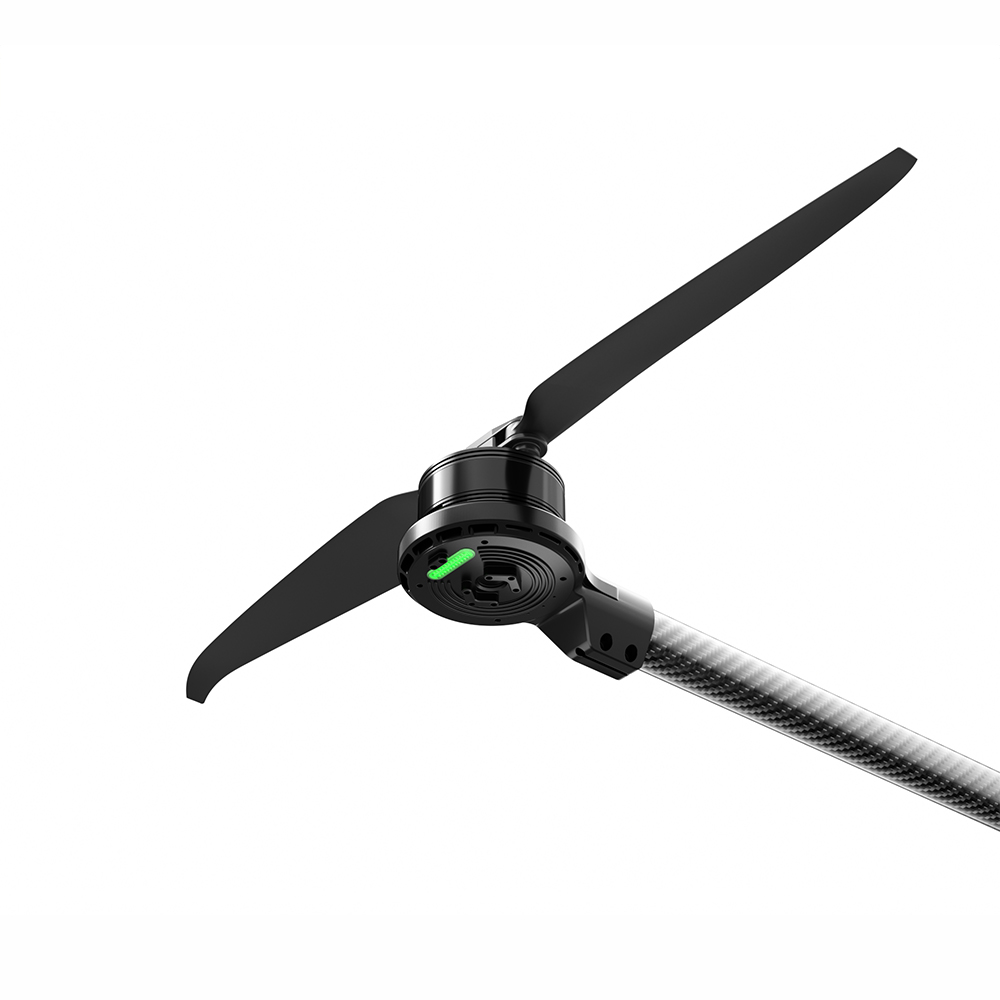

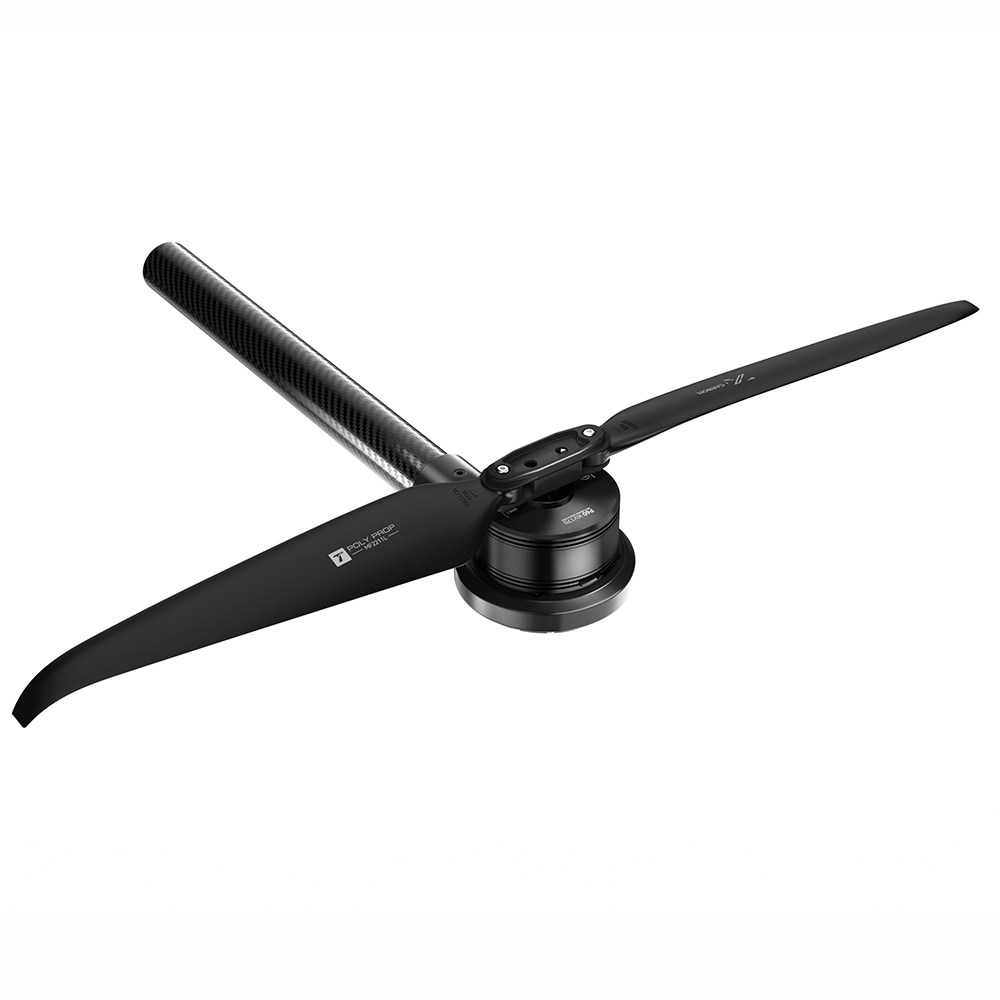

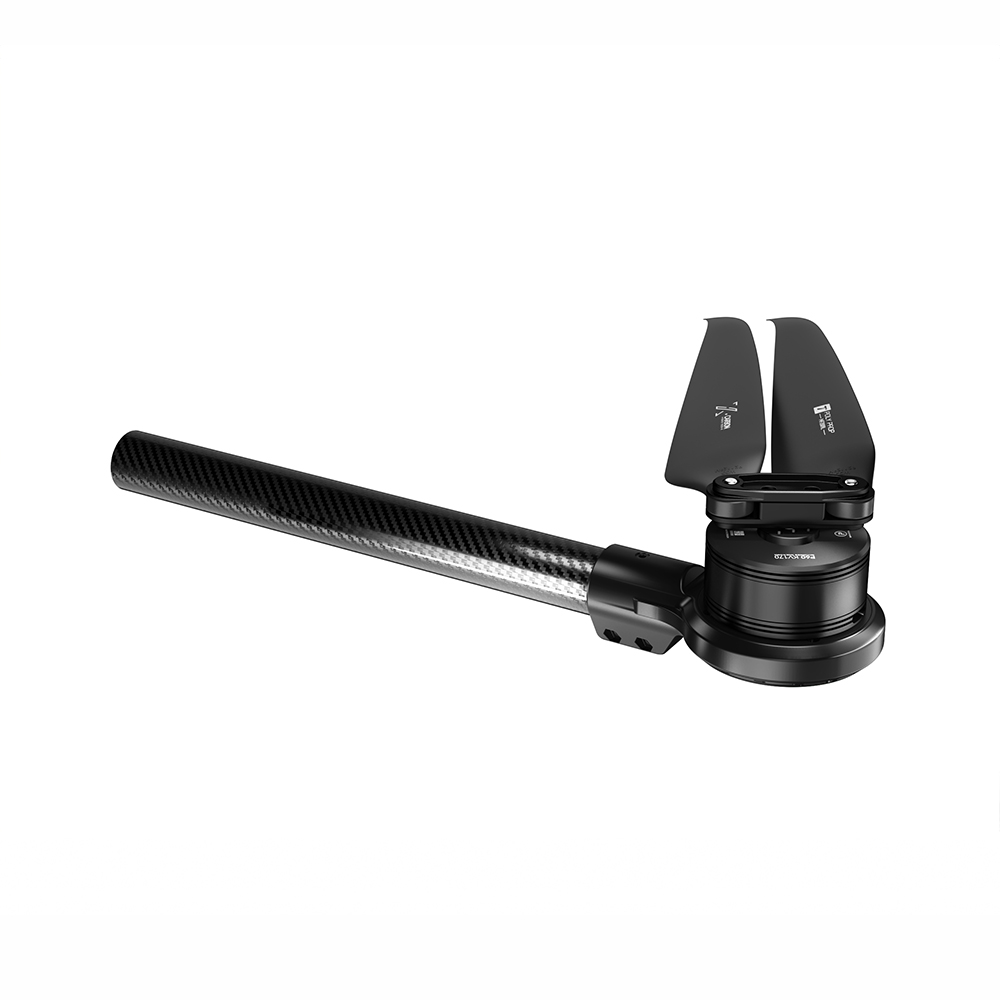

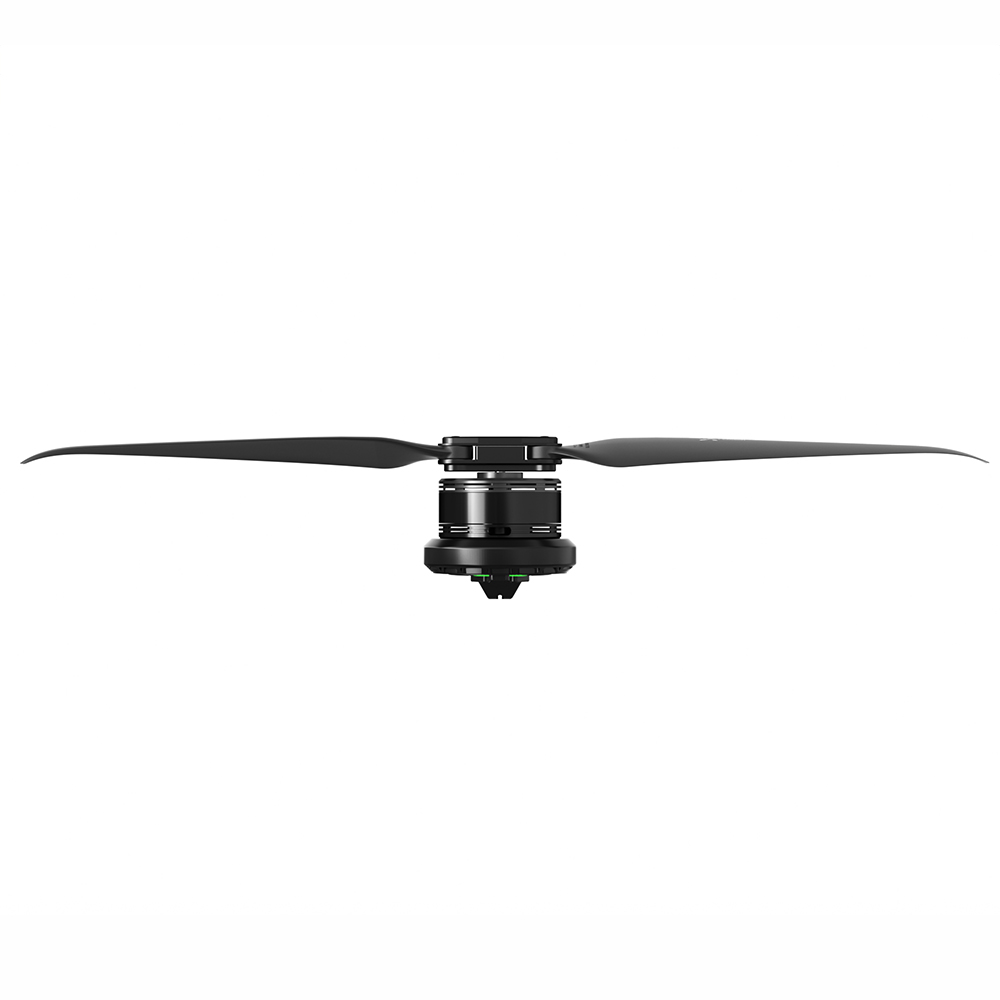

P60-X Combo Pack X-Agricultural Type (Integrated Propulsion System）UAV Motor 170KV
$229.00
P60-X Combo Pack X-Agricultural Type (Integrated Propulsion System) UAV Motor 170KV. Turn-key system, perfect compatibility, superb cost performance. Fast and convenient. Free of complicated mounting process.
Description
Detail Information
- Turn-key system, perfect compatibility, superb cost performance
- Fast and convenient

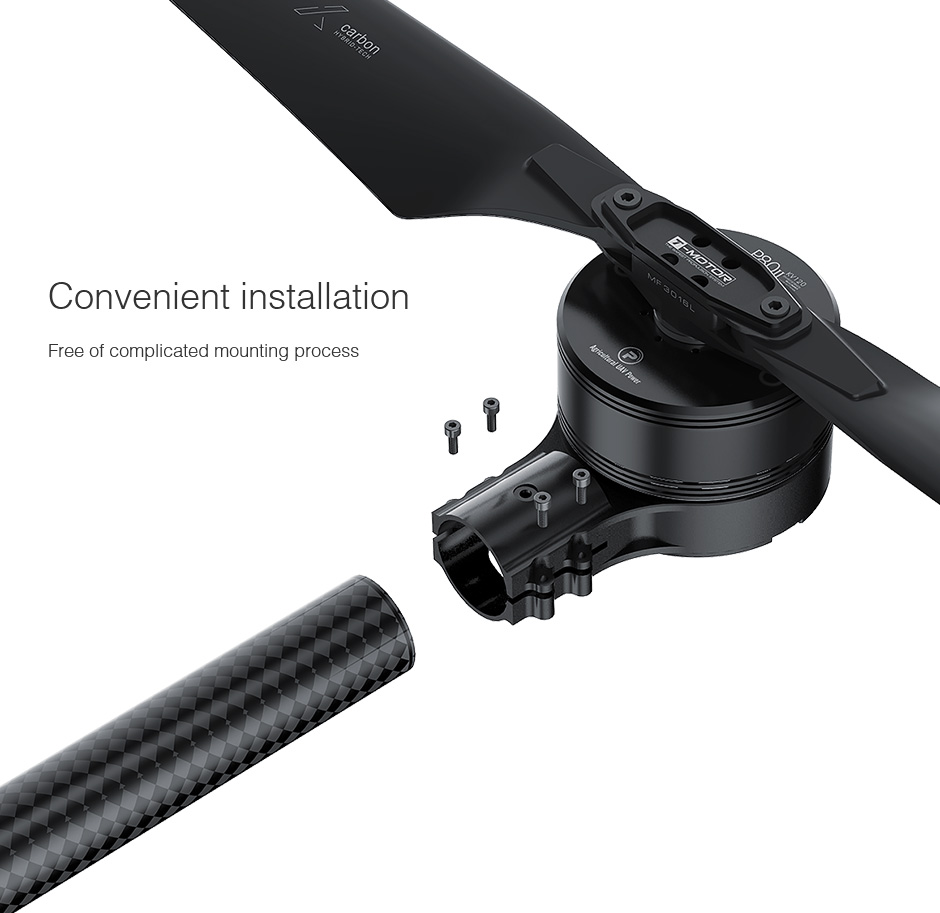

- Free of complicated mounting process
Specifications
| Product Model | E60-SKV170 | Exposed wire length | 600mm |
| Arm size | 130*86.2*78.5mm | Boom weight (incl. wire) | 570g |
| Configu ration | 24N28P | Shaft Diameter | IN:6mm |
| Idle Current（24V） | 1.2A | Rated Voltage(Lipo) | 6-12S |
| Internal Resistance | 80mΩ | IP | / |
| Peak Current(180s) | 38A | ESC | FLAME 60A 12S |
| Max Power (180S) | 1800W | Propeller Recommendation | MF2211 |

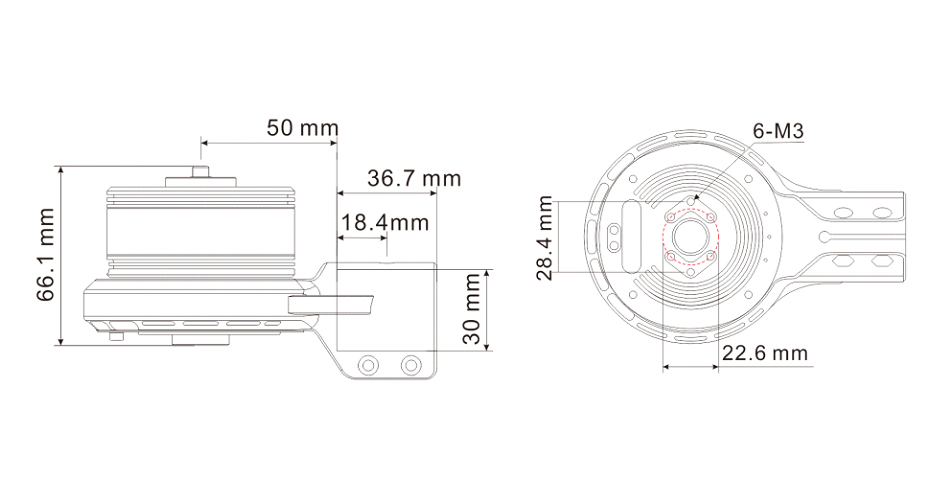

Technical Drawing
Test Data
| Type | Propeller | Throttle (%) | Voltage (V) | Current (A) | Power (W) | RPM | Torque (N·m) | Thrust (g) | Efficiency (g/W) | Operating Temperature (℃) |
| E60-SKV170（FLAME 60A 12S ） | MF2211 | 40% | 47.87 | 7.44 | 356 | 3340 | 0.82 | 3085 | 8.67 | 74 （Ambient Temperature： 25） |
| 45% | 47.80 | 9.30 | 445 | 3608 | 0.97 | 3613 | 8.13 | |||
| 50% | 47.76 | 11.40 | 544 | 3869 | 1.10 | 4143 | 7.61 | |||
| 55% | 47.69 | 13.85 | 660 | 4128 | 1.25 | 4713 | 7.14 | |||
| 60% | 47.65 | 16.02 | 763 | 4339 | 1.37 | 5198 | 6.81 | |||
| 65% | 47.57 | 18.75 | 892 | 4590 | 1.52 | 5765 | 6.46 | |||
| 70% | 47.49 | 21.79 | 1035 | 4801 | 1.68 | 6382 | 6.17 | |||
| 75% | 47.38 | 25.07 | 1188 | 5025 | 1.84 | 6991 | 5.89 | |||
| 80% | 47.28 | 28.50 | 1348 | 5238 | 1.99 | 7600 | 5.64 | |||
| 85% | 47.16 | 32.44 | 1530 | 5460 | 2.16 | 8248 | 5.39 | |||
| 90% | 47.07 | 36.24 | 1706 | 5662 | 2.31 | 8838 | 5.18 | |||
| 95% | 46.94 | 40.16 | 1885 | 5857 | 2.46 | 9424 | 5.00 | |||
| 100% | 46.75 | 47.32 | 2212 | 6152 | 2.70 | 10353 | 4.68 | |||
| Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.) | ||||||||||
