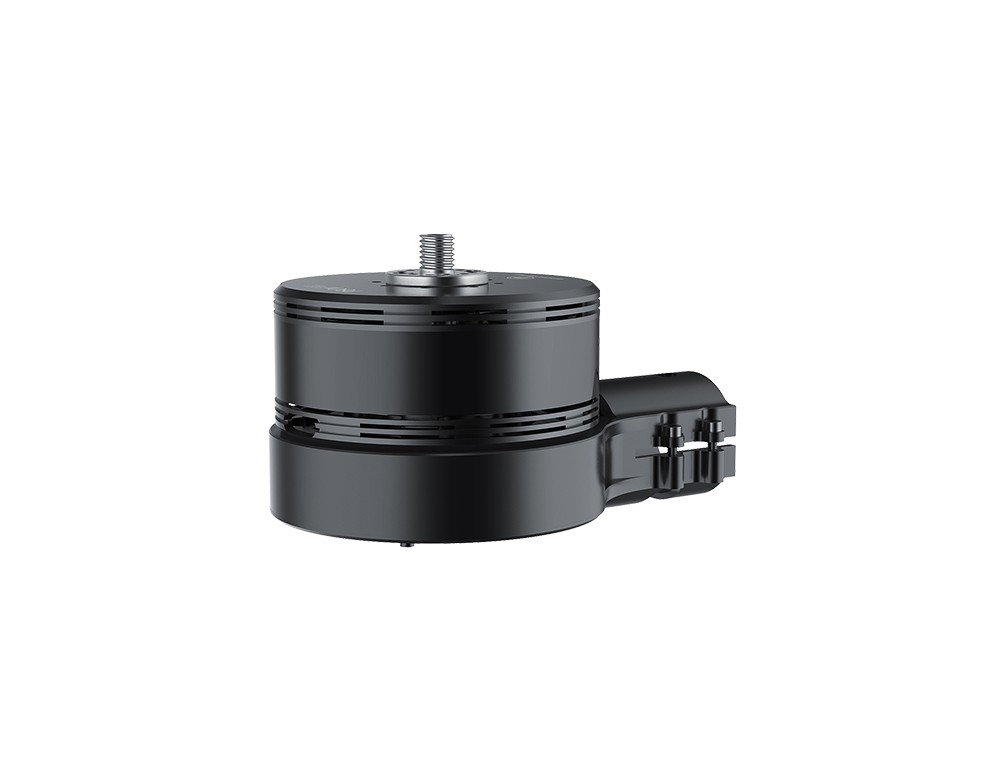

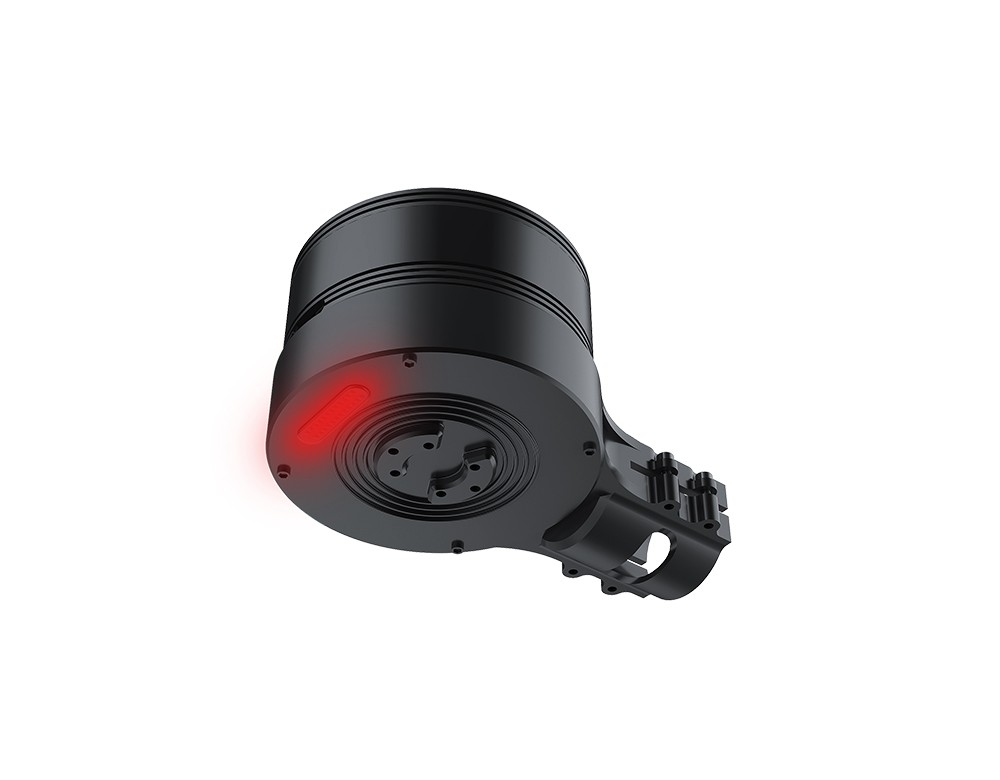

P80-X Combo Pack X-Agricultural Type (Integrated Propulsion System ) UAV Motor 100/120KV
$349.00

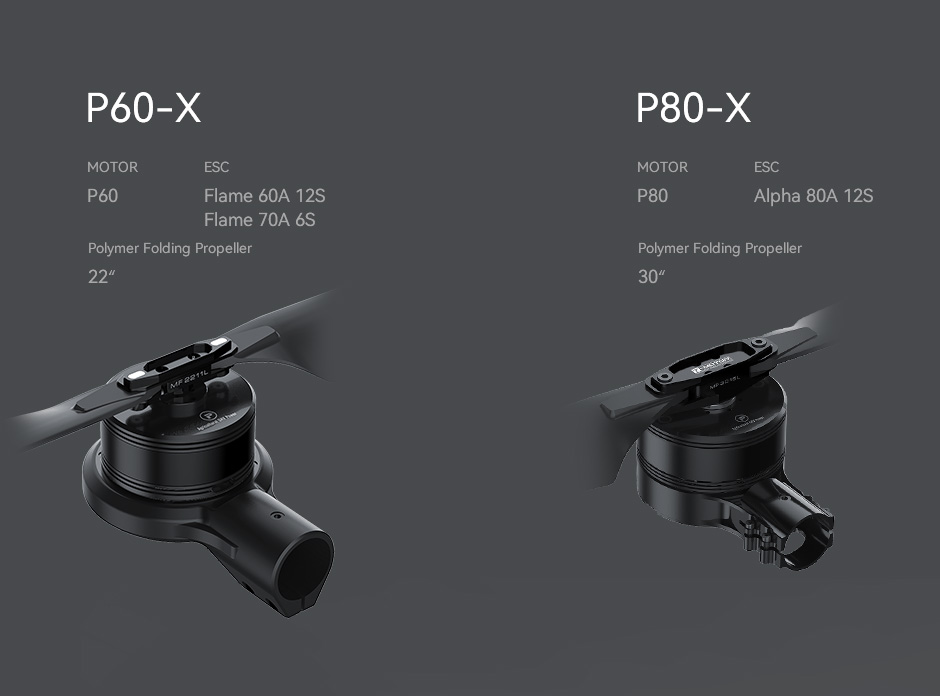

T-MOTOR P80 Integrated Propulsion delivers reliable thrust, offering UAVs high efficiency and stability with an easy-to-integrate design for aerial missions.
Description
Detail Information
- Turn-key system, perfect compatibility, superb cost performance
- Fast and convenient
- Free of complicated mounting process
Specifications
| Product Model | P80-XKV100 | Exposed wire length | 600mm |
| Arm size | 144*95.2*84.6mm | Boom weight (incl. wire) | 950g |
| Configu ration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current（24V） | 1.6A | Rated Voltage(Lipo) | 12S |
| Internal Resistance | 51mΩ | IP | / |
| Peak Current(180s) | 60A | ESC | ALPHA 80A 12S |
| Max Power (180S) | 2200W | Propeller Recommendation | MF3016 |
| Product Model | P80-XKV120 | Exposed wire length | 600mm |
| Arm size | 144*95.2*84.6mm | Boom weight (incl. wire) | 950g |
| Configu ration | 36N42P | Shaft Diameter | IN:15mm |
| Idle Current（24V） | 2A | Rated Voltage(Lipo) | 12S |
| Internal Resistance | 41mΩ | IP | / |
| Peak Current(180s) | 70A | ESC | ALPHA 80A 12S |
| Max Power (180S) | 2800W | Propeller Recommendation | MF3016 |

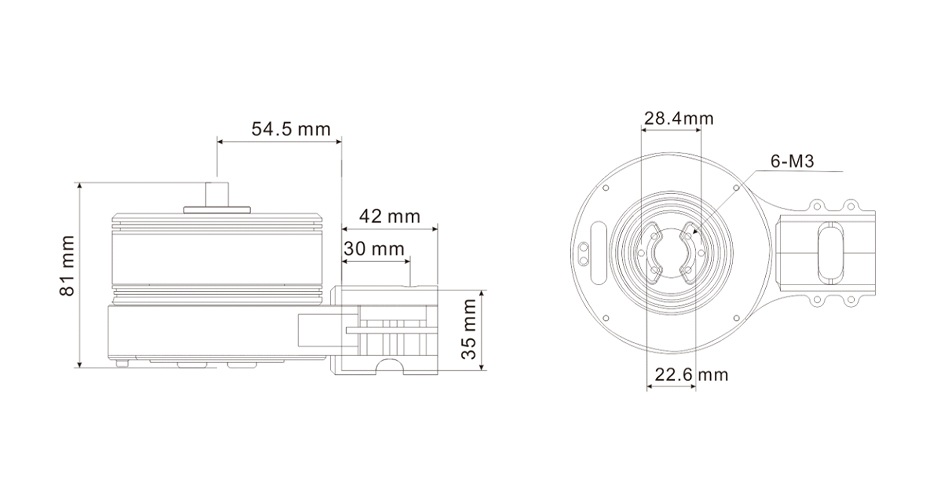

Technical Drawing
Test Data
| Type | Propeller | Throttle (%) | Voltage (V) | Current (A) | Power (W) | RPM | Torque (N·m) | Thrust (g) | Efficiency (g/W) | Operating Temperature (℃) |
| P80-X KV100（Alpha 80A 12S ） | MF3016 | 40% | 47.86 | 6.06 | 290 | 1934 | 1.13 | 3194 | 11.01 | 74 （Ambient Temperature： 25） |
| 45% | 47.79 | 7.98 | 382 | 2140 | 1.38 | 3908 | 10.24 | |||
| 50% | 47.75 | 10.31 | 492 | 2342 | 1.66 | 4739 | 9.63 | |||
| 55% | 47.66 | 13.02 | 621 | 2540 | 1.95 | 5613 | 9.04 | |||
| 60% | 47.58 | 16.17 | 769 | 2737 | 2.27 | 6535 | 8.49 | |||
| 65% | 47.49 | 19.62 | 932 | 2926 | 2.59 | 7462 | 8.01 | |||
| 70% | 47.38 | 23.49 | 1113 | 3108 | 2.93 | 8430 | 7.57 | |||
| 75% | 47.26 | 27.79 | 1313 | 3288 | 3.27 | 9421 | 7.17 | |||
| 80% | 47.12 | 32.34 | 1524 | 3458 | 3.62 | 10420 | 6.84 | |||
| 85% | 47.01 | 37.21 | 1749 | 3621 | 3.96 | 11409 | 6.52 | |||
| 90% | 46.82 | 42.43 | 1987 | 3782 | 4.30 | 12446 | 6.27 | |||
| 95% | 46.74 | 46.42 | 2170 | 3897 | 4.54 | 13157 | 6.06 | |||
| 100% | 46.71 | 47.80 | 2233 | 3935 | 4.62 | 13419 | 6.01 | |||
| P80-X KV120（Alpha 80A 12S ）） | MF3016 | 40% | 47.87 | 7.29 | 349 | 2060 | 1.28 | 3646 | 10.45 | 74 （Ambient Temperature： 25） |
| 45% | 47.82 | 9.65 | 461 | 2274 | 1.56 | 4445 | 9.63 | |||
| 50% | 47.74 | 12.47 | 595 | 2490 | 1.88 | 5368 | 9.02 | |||
| 55% | 47.64 | 15.80 | 753 | 2704 | 2.21 | 6360 | 8.45 | |||
| 60% | 47.54 | 19.63 | 933 | 2907 | 2.55 | 7380 | 7.91 | |||
| 65% | 47.43 | 23.81 | 1129 | 3107 | 2.91 | 8408 | 7.45 | |||
| 70% | 47.27 | 28.62 | 1353 | 3306 | 3.29 | 9508 | 7.03 | |||
| 75% | 47.12 | 33.80 | 1592 | 3494 | 3.67 | 10624 | 6.67 | |||
| 80% | 46.97 | 39.38 | 1850 | 3675 | 4.03 | 11773 | 6.36 | |||
| 85% | 46.80 | 45.57 | 2132 | 3855 | 4.43 | 12936 | 6.07 | |||
| 90% | 46.61 | 51.95 | 2422 | 4023 | 4.81 | 13965 | 5.77 | |||
| 95% | 46.42 | 58.67 | 2723 | 4188 | 5.17 | 15102 | 5.55 | |||
| 100% | 46.36 | 60.71 | 2815 | 4236 | 5.27 | 15388 | 5.47 | |||
| Notes：Motor temperature is the motor surface temperature aftering running at 100% for 10 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.) | ||||||||||
