Sale!

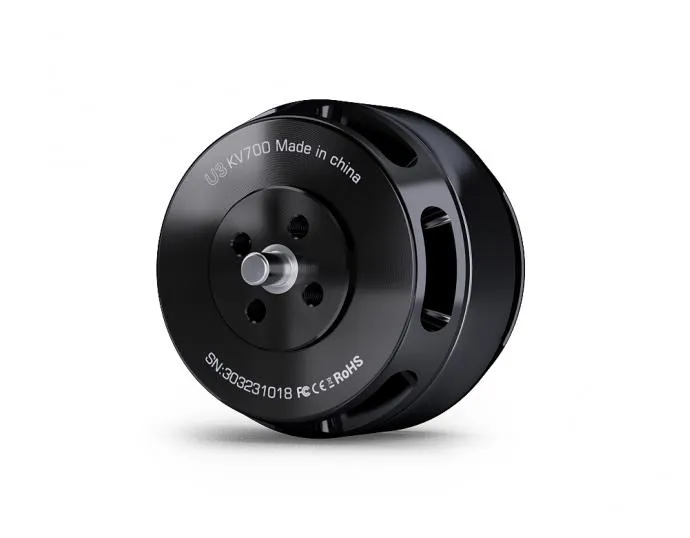

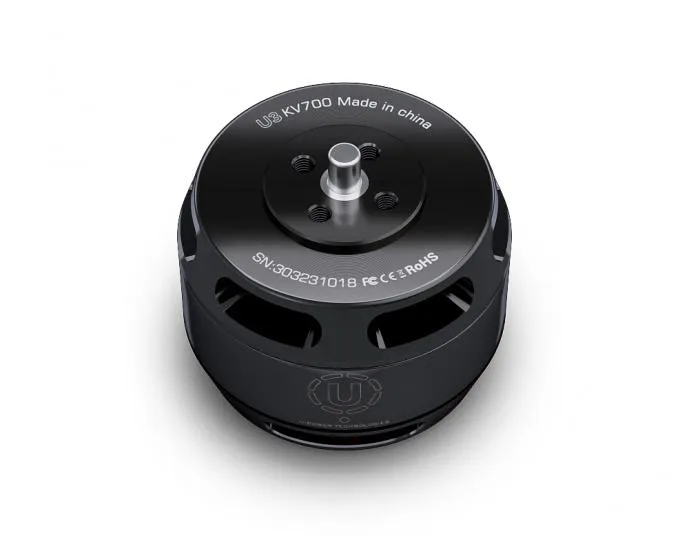

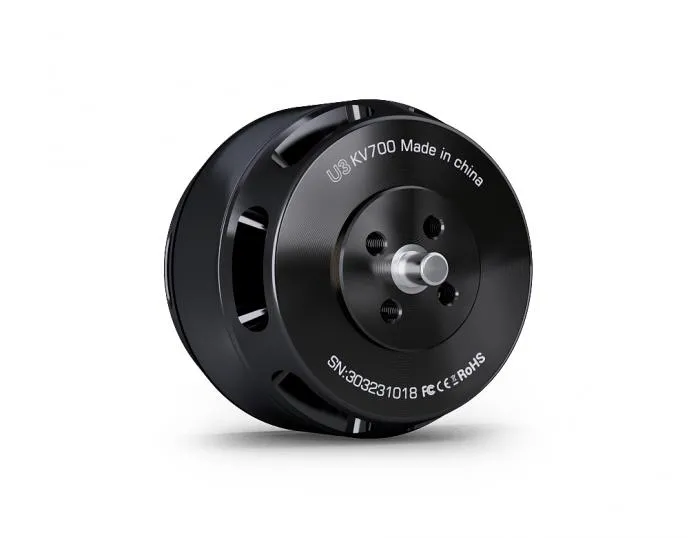

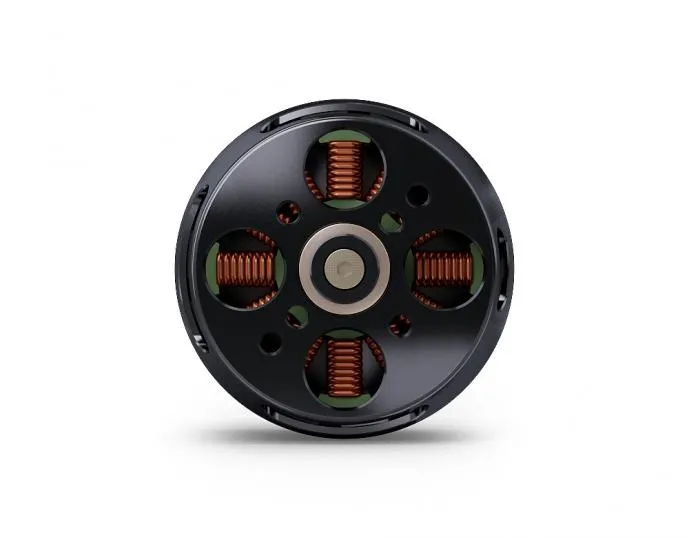

U3 Power Type High Efficiency UAV Motor KV700
Original price was: $109.90.$108.90Current price is: $108.90.
T-MOTOR U3 U Power UAV motor with verified options and complete technical specifications.
55 in stock
Description
U3 U Power UAV Motor
The T-MOTOR U3 is part of the U Power UAV motor range for professional multirotor and heavy-lift aircraft projects. Available options: KV700. Use the verified tables below to check voltage, propeller, dimensional and load compatibility before selecting a configuration.
This U3 UAV motor is presented with the source technical data unchanged. Match the motor with the listed ESC, battery and propeller recommendations for the intended airframe.
Detail Information
Specifications
| Internal Resistance | 50mΩ | Configuration | 12N14P |
| Shaft Diameter | 4mm | Motor Dimensions | Φ41.8×30.75mm |
| AWG | 18# | Cable Length | 600mm |
| Weight Including Cables | 128g | Weight Excluding Cables | 97g |
| No. of Cells (Lipo) | 3-4S | Idle Current@10v | 0.5A |
| Max Power (180S) | 500W | Max Continuous Current 180S | 25A |
| Item No. | Voltage (V) | Prop | Throttle | Current (A) | Power (W) | Thrust (G) | RPM | Efficiency (G/W) | Operating Temperature (℃) |
| U3 KV700 | 11.1 | T-MOTOR 12*4CF | 50% | 2.5 | 27.75 | 350 | 4000 | 12.61 | 40 |
| 65% | 4.8 | 53.28 | 550 | 4900 | 10.32 | ||||
| 75% | 6.6 | 73.26 | 700 | 5500 | 9.56 | ||||
| 85% | 9.1 | 101.01 | 870 | 6300 | 8.61 | ||||
| 100% | 11.1 | 123.21 | 1000 | 6600 | 8.12 | ||||
| T-MOTOR 13*4.4CF | 50% | 2.9 | 32.19 | 400 | 3800 | 12.43 | 42 | ||
| 65% | 5.6 | 62.16 | 650 | 4900 | 10.46 | ||||
| 75% | 7.9 | 87.69 | 830 | 5300 | 9.47 | ||||
| 85% | 10.5 | 116.55 | 1000 | 6000 | 8.58 | ||||
| 100% | 12.6 | 139.86 | 1100 | 6400 | 7.87 | ||||
| T-MOTOR 14*4.8CF | 50% | 4.1 | 45.51 | 550 | 3500 | 12.09 | 43 | ||
| 65% | 7.7 | 85.47 | 890 | 4500 | 10.41 | ||||
| 75% | 10.7 | 118.77 | 1060 | 4900 | 8.92 | ||||
| 85% | 14.5 | 160.95 | 1300 | 5500 | 8.08 | ||||
| 100% | 17.3 | 192.03 | 1460 | 5800 | 7.60 | ||||
| 14.8 | T-MOTOR 11*3.7CF | 50% | 3.2 | 47.36 | 460 | 5300 | 9.71 | 43 | |
| 65% | 6 | 88.80 | 710 | 6500 | 8.00 | ||||
| 75% | 8.2 | 121.36 | 870 | 7500 | 7.17 | ||||
| 85% | 11 | 162.80 | 1080 | 8200 | 6.63 | ||||
| 100% | 13 | 192.40 | 1230 | 8700 | 6.39 | ||||
| T-MOTOR 12*4CF | 50% | 3.8 | 56.24 | 580 | 5000 | 10.31 | 43 | ||
| 65% | 7.4 | 109.52 | 880 | 6300 | 8.04 | ||||
| 75% | 10.3 | 152.44 | 1100 | 7300 | 7.22 | ||||
| 85% | 14 | 207.20 | 1360 | 7700 | 6.56 | ||||
| 100% | 16.8 | 248.64 | 1600 | 8300 | 6.44 | ||||
| T-MOTOR 13*4.4CF | 50% | 4.7 | 69.56 | 730 | 4900 | 10.49 | 47 | ||
| 65% | 9 | 133.20 | 1120 | 6100 | 8.41 | ||||
| 75% | 12.3 | 182.04 | 1400 | 6800 | 7.69 | ||||
| 85% | 16 | 236.80 | 1600 | 7400 | 6.76 | ||||
| 100% | 19.4 | 287.12 | 1800 | 7850 | 6.27 | ||||
| Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min. | |||||||||
