Name: X-A14-18S UAV Coaxial Modular Propulsion System
Brand: T-MOTOR
SKU: T-MOTOR001587
Price: 1142.90 USD
Availability: InStock

X-A14-18S UAV Coaxial Modular Propulsion System

$1,142.90

X-A14-18S The preferred solution for 140~160kg coaxial multirotor drones X-A14-18S

Description

X-A14-18S The preferred solution for 140~160kg coaxial multirotor drones X-A14-18S

Model No.	X-A14 18S KV49.6	Tube Size	60mm
Setup	A14-18S (Motor)+18S FOC 200A (ESC) +EFZ5720 (Propeller)	Wire Material, Wire Gauge, Color	Power Wires: 8#AWG Red & Black Signal Wires: 5+1 Shielded
Recommended Battery	18S (LiPo)	Wire Length	1500±5mm
Rated Thrust	45~50kg	Weight	9800 ±2%g (Incl. Wires+Propeller)
Efficiency At Rated Thrust	7.4g/W (45kg)	IP	IPX5
Max. Thrust	105kg	Recommended Ambient Temperature	-20~55℃
Motor Specs
Stator Size	138*25mm	KV	49.6
ESC Specs
Throttle Range	1100~1940us (Fixed)	Max. Voltage	83V
Protocol	DRONE CAN、UAV CAN、 CUBE CAN	Peak Current (For A Short Time)	150A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO
Prop Specs
Model No.	EFZ5720 (Folding Carbon Fiber)	Length	57 Inch (1447.8mm)

Motor Specs
Stator Size	138*25mm	KV	49.6

ESC Specs
Throttle Range	1100~1940us (Fixed)	Max. Voltage	83V
Protocol	DRONE CAN、UAV CAN、 CUBE CAN	Peak Current (For A Short Time)	150A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN	BEC	NO

Prop Specs
Model No.	EFZ5720 (Folding Carbon Fiber)	Length	57 Inch (1447.8mm)

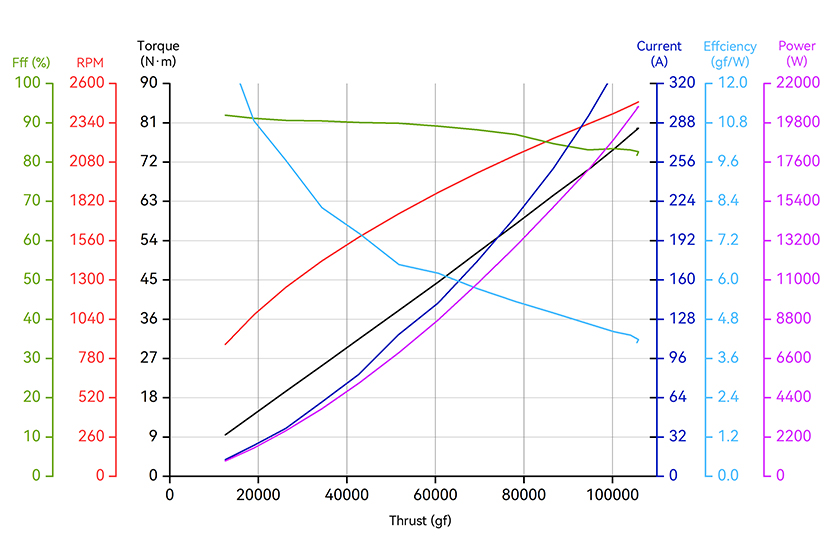

Type	Voltage (V)	Throttle	Current (A)	Thrust (gf)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
X-A14-18S KV49.6 + 18S FOC 200A + EFZ5720	92	30%	13.70	12504	9.50	874	91.98	13.23	98 (Ambient Temperature: 25)
35%	25.36	18992	14.24	1070	91.20	10.86
40%	39.30	26204	19.50	1252	94.28	9.66
45%	60.68	34366	25.38	1426	90.52	8.21
50%	83.56	42791	31.57	1586	90.96	7.42
55%	115.83	51712	38.08	1740	86.79	6.47
60%	141.34	60604	44.56	1879	89.89	6.21
65%	175.40	69427	51.29	2010	89.20	5.74
70%	211.96	78150	57.90	2128	88.23	5.34
75%	251.01	86603	64.38	2237	87.06	5.00
80%	293.98	94551	70.31	2334	84.72	4.66
85%	329.12	100310	75.00	2404	83.16	4.42
90%	349.07	104007	78.21	2454	83.45	4.32
95%	367.22	105810	79.78	2479	81.76	4.18
100%	373.49	105448	79.71	2474	80.15	4.09
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)
