Name: A12-14S UAV Modular Propulsion kit for Multi-rotor Drones
Brand: T-MOTOR
SKU: T-MOTOR001455
Price: 285.90 USD
Availability: InStock

A12-14S UAV Modular Propulsion kit for Multi-rotor Drones

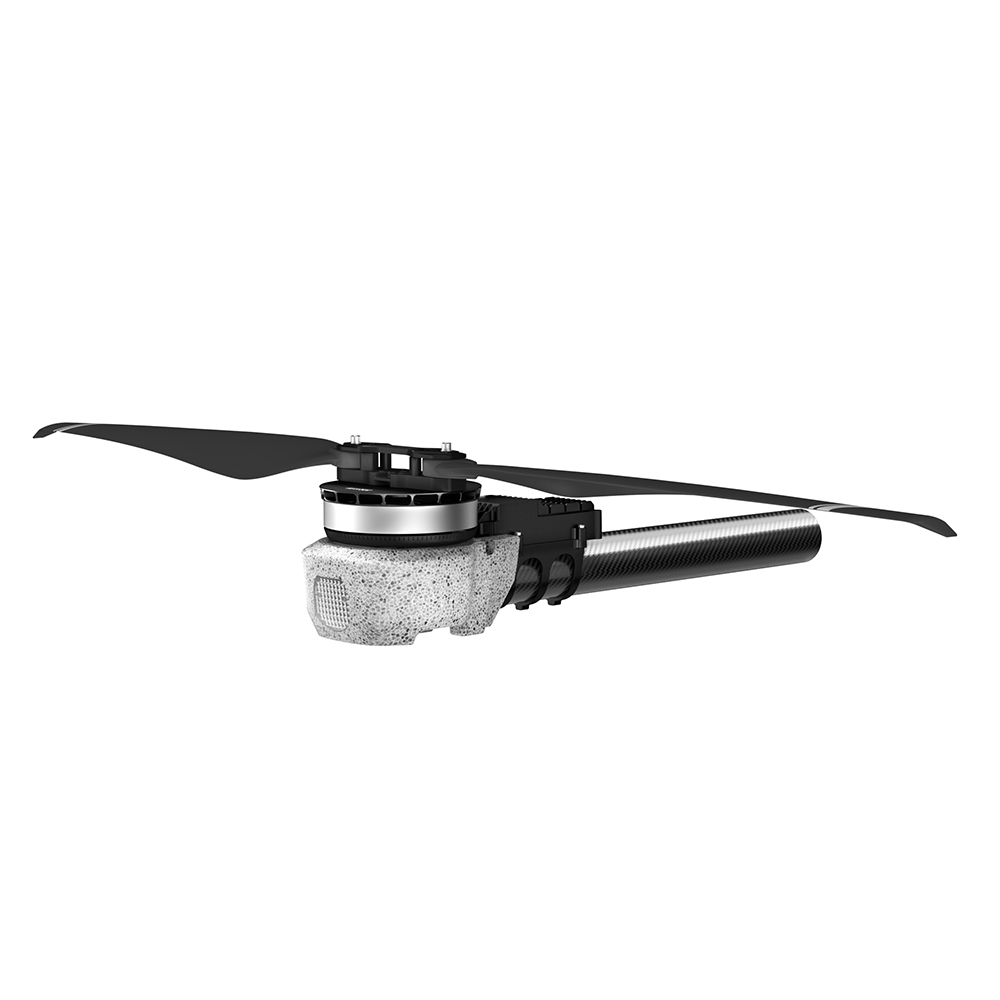

A12-14S UAV Modular Propulsion kit for Multi-rotor Drones - Image 2

A12-14S UAV Modular Propulsion kit for Multi-rotor Drones - Image 3

A12-14S UAV Modular Propulsion kit for Multi-rotor Drones

$285.90

A12-14S MODULAR Propulsion System A12-14S

SKU: T-MOTOR001455 Categories: A Series Modular Propulsion Systems, Single-Axis 12-14S Tag: T-MOTOR Brand: T-MOTOR

Description
Reviews (0)

Description

Detail Information

A12-14S MODULAR Propulsion System A12-14S

Specifications

Specification

Model No.	A12 KV86	Tube size	50mm
Setup	A12-14S (Motor)+14S FOC 200A (ESC)+ MF4114P (Prop)	Wire material, wire gauge, color	Power wires：10#AWG red & black Signal wires: 5P Teflon
Recommended battery	12~14S (LiPo)	Wire length	1700±5mm
Rated thrust	15~18kg	Weight	2285±2%g (incl. Wires+prop)
Efficiency at rated thrust	8.2g/W (15.7kg)	IP	IPX6
Max. thrust	32.8kg	Recommended ambient temperature	-20～55℃
Motor specs.
Stator size	111*15mm	KV	86
ESC specs.
Throttle range	1100~1940us	Max. voltage	61V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN	Peak current (for a short time)	200A (Open environment and temperature≤60℃)
Control method	PWM/CAN	BEC	NO
Prop specs
Model No.	MF4114P (Polymer Folding)	Length	41 inch (1043.5mm)

Specification

Motor specs.
Stator size	111*15mm	KV	86

Specification

ESC specs.
Throttle range	1100~1940us	Max. voltage	61V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN	Peak current (for a short time)	200A (Open environment and temperature≤60℃)
Control method	PWM/CAN	BEC	NO

Specification

Prop specs
Model No.	MF4114P (Polymer Folding)	Length	41 inch (1043.5mm)

Test Data

Type	Voltage (V)	Throttle	Current (A)	Thrust (g)	Torque (N·m)	RPM	Motor Efficiency (%)	Overall Efficiency (gf/W)	Operating Temperature (℃)
A12 KV86 + 14S FOC 200A + MF4114P	54	30%	4.86	3770	1.87	1170	87.20	14.30	180 (Ambient Temperature: 27.8)
35%	7.73	5304	2.60	1355	88.20	12.70
40%	11.37	7147	3.41	1542	89.50	11.60
45%	15.85	9069	4.25	1752	91.20	10.60
50%	21.62	11310	5.27	1932	91.50	9.70
55%	28.09	13417	6.23	2112	91.20	8.90
60%	35.63	15702	7.26	2296	91.20	8.20
65%	44.10	18060	8.32	2436	89.90	7.60
70%	53.09	20328	9.31	2607	89.40	7.20
75%	62.90	22516	10.26	2754	88.00	6.70
80%	74.51	24983	11.31	2935	87.40	6.30
85%	86.04	27155	12.22	3082	86.10	5.90
90%	97.65	29065	13.02	3234	85.20	5.60
95%	110.20	30960	13.79	3354	82.90	5.30
100%	127.78	32833	14.42	3489	78.20	4.90
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2min. (Data above based on benchtest at T-MOTOR lab are for reference only.)
