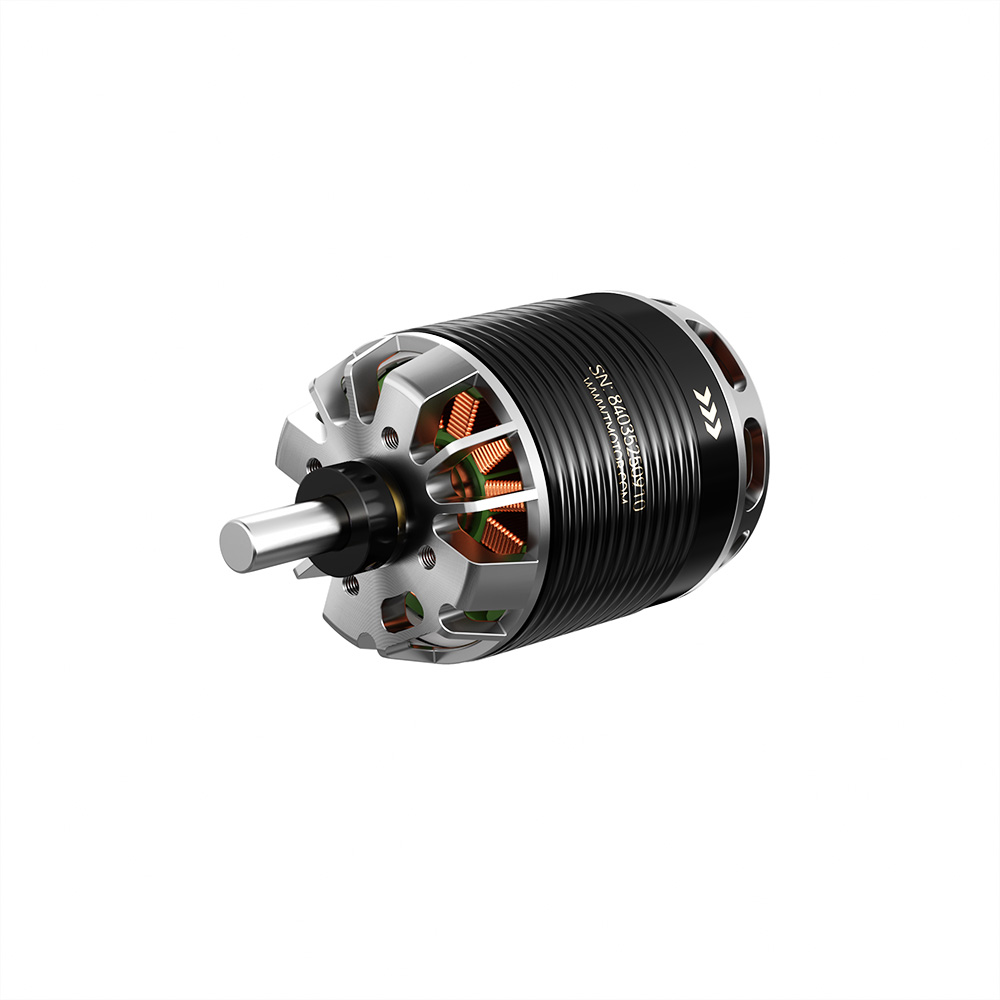

Name: AX435-B
Brand: T-MOTOR
SKU: TM-AX435-B
Price: 129.00 USD
Availability: InStock

AX435-B

$129.00

AX SERIES BRUSHLESS MOTORS

SKU: TM-AX435-B Category: AX Series Fixed-Wing Motors Brand: T-MOTOR

Description
Reviews (0)

Description

Detail Information

AX SERIES BRUSHLESS MOTORS

A POWER SYSTEM SPECIFICALLY ENGINEERED FOR FIXED-WING CRUISE UAVS

AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

HIGH MOUNTING VERSATILITY

Designed for pusher configurations. Features rear shaft output for internally mounted installations and front shaft output for externally mounted installations, adapting to diverse airframe layouts.

ENHANCED COOLING EFFICIENCY

Optimized for pusher applications. End caps incorporate tilted centrifugal cooling fins aligned with rotation direction, improving heat dissipation efficiency by 5%.

QUICK INSTALLATION

Integrated collet-type prop hub enables rapid installation of folding propellers.

AX435-B Configuration

Recommended Takeoff Weight

10-12kg

Max Thrust

9.7kg

Motor weight

485g

Recommended Battery

12S(Lipo)

Recommended Setup

AX435-B Motor+AT115A ESC+ AUFZ16*13/AUFZ17*14/AUFZ17*11 Prop

Specifications

Model No.	AX435-B	Magnet Level	180℃
Motor Size	Φ49.5*89mm	Lead Cable	Enameled Wire 150mm
Stator	150°C high temperature -resisting coatings	Copper Wire	220℃
Configuration	12N14P	Coil Insulation Test	500V/5s
Shaft Diameter	IN:8mm OUT:8mm	Rotor Dynamic BalanceStandard	≤30mg
Bearing	Imported MR148/688ZZ	Package Size	19710475mm
KV	250	Idle Current(15V)	1.6A
Max Power	2000W	Peak Current	82A
Rated Voltage (Lipo)	12S	Internal Resistance	37mΩ
Max Thrust	9.7kg	Weight (incl.cable)	485g

Test Data

Type	Propeller	Throttle (%)	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N·m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AX435-B KV220	AUFZ 16*13	40%	44.71	6.39	286	3616	0.61	1143	4.00	77.4 （Ambient Temperature： 25）
		45%	44.66	8.42	376	3992	0.74	1403	3.73
		50%	44.61	11.35	506	4412	0.91	1734	3.42
		55%	44.52	15.36	684	4848	1.10	2111	3.09
		60%	44.44	19.75	878	5256	1.31	2498	2.85
		65%	44.36	23.85	1058	5597	1.49	2842	2.69
		70%	44.24	29.75	1316	5979	1.70	3256	2.47
		75%	44.13	35.98	1588	6326	1.89	3661	2.31
		80%	44.00	42.18	1856	6633	2.11	4051	2.18
		90%	43.70	58.10	2539	7239	2.55	4836	1.90
		100%	43.38	74.42	3228	7708	2.91	5488	1.70
	AUFZ 17*14	40%	44.77	4.95	221	3722	0.46	1437	6.49	85.3 （Ambient Temperature： 25）
		45%	44.74	6.55	293	4121	0.56	1777	6.07
		50%	44.69	8.95	400	4578	0.70	2226	5.57
		55%	44.63	11.93	532	5021	0.85	2704	5.08
		60%	44.57	15.05	671	5441	0.99	3192	4.76
		65%	44.50	18.45	821	5816	1.11	3664	4.46
		70%	44.41	22.86	1015	6212	1.27	4213	4.15
		75%	44.32	27.93	1238	6606	1.48	4790	3.87
		80%	44.21	33.51	1481	6977	1.67	5357	3.62
		90%	43.96	45.84	2015	7631	2.04	6477	3.21
		100%	43.68	60.38	2637	8195	2.44	7473	2.83
AX435-B KV250	AUFZ 17*11	40%	44.74	6.31	282	4097	0.53	1963	6.95	89.2 （Ambient Temperature： 25）
		45%	44.70	8.40	376	4539	0.65	2426	6.46
		50%	44.64	11.31	505	5020	0.80	2993	5.93
		55%	44.56	15.60	695	5526	0.98	3657	5.26
		60%	44.48	19.66	875	5976	1.14	4285	4.90
		65%	44.40	24.00	1066	6376	1.28	4903	4.60
		70%	44.29	29.64	1313	6798	1.52	5612	4.27
		75%	44.15	36.87	1628	7256	1.77	6431	3.95
		80%	44.03	43.15	1900	7613	1.94	7098	3.74
		90%	43.72	59.33	2594	8307	2.35	8497	3.28
		100%	43.28	81.57	3531	8927	2.78	9698	2.75
Notes：Motor temperature is the motor surface temperature aftering running at 100% for 1 mins. (Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.)

Technical Drawing

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to “[email protected]” in time.
